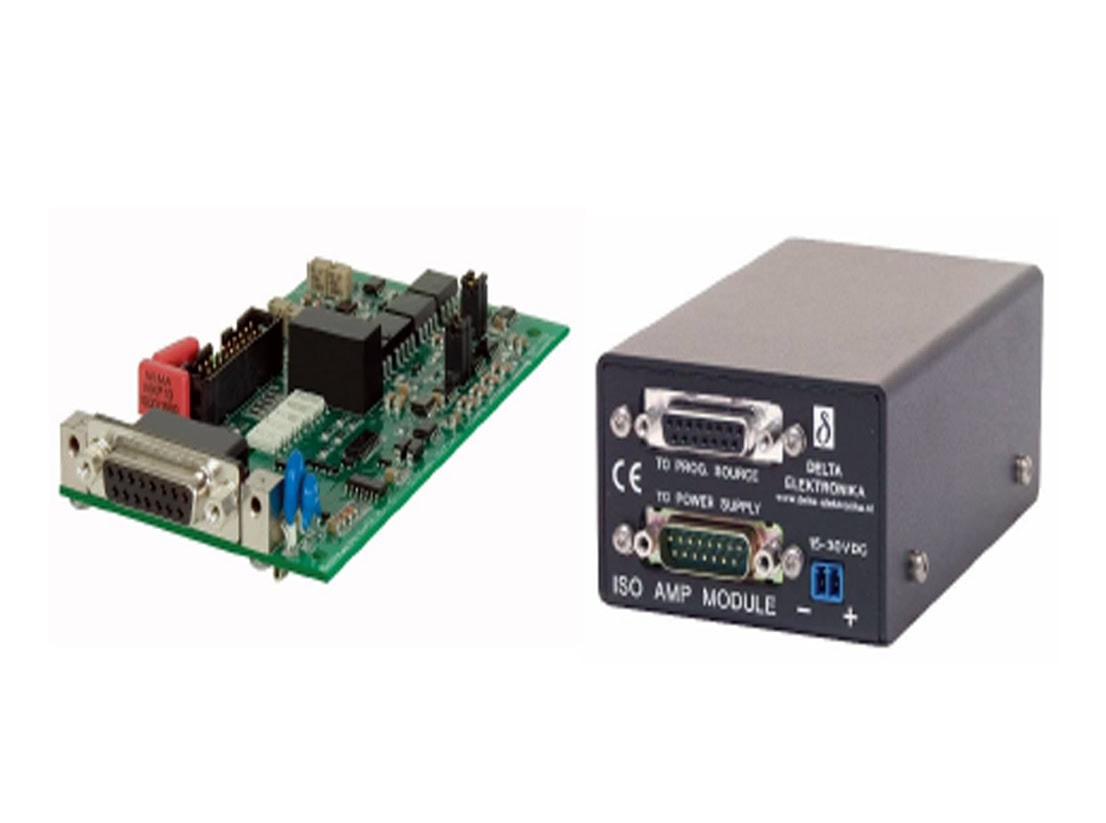

ISO AMP – Four channel analogue isolation amplifier
£0.00
SKU: ISO AMP - Four channel analogue isolation amplifier
The ISO AMP amplifier has selectable 0-5 V and 0-10 V signal levels. Isolated programming and monitoring of U, I and status signals.
Prevents problems with earth loops and CM-voltages. Pin compatible with ES-series, SM800, SM1500 and SM6000
Factory installed. Negative current programming and monitoring .in case of optional power sink
Specifications
Programming and monitoring offset : +/- 60 μV typical
Full scale error : 0.1% calibrated (10% for negative signals)
Non-linearity : 0.01% typical, TC = 65ppm/°C
Common mode rejection : 80 dB @ 50 Hz
