ASB320 series
£0.00
SKU: ASB320 series
The ASB320 Series is a range of 320W complete, baseplate‑cooled AC‑DC power supplies
offering single outputs from 12V to 54VDC in a compact, encapsulated brick format.
Featuring built-in EMC filter, AC fuse and bulk storage capacitor, the ASB320 simplifies
system design by providing a complete AC-DC power solution ready for installation into end
applications. High efficiency and baseplate cooling enable efficient thermal management,
supporting reliable operation in compact and sealed enclosures.
Global ITE safety approvals, Class B emissions and a low profile rugged mechanical design
make the ASB320 series an ideal solution to a wide range of applications including industrial
automation, analytical instrumentation, test and measurement and communications
equipment.
Baseplate cooled encapsulated brick package

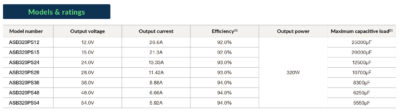

Single outputs from 12V to 54VDC
Output voltage trim ±5%
Input range: 90 to 264VAC
High efficiency, up to 94%
Peak power up to 360W for 5s
Class B conducted & radiated emissions
Over current, over voltage & over temperature protection
-40°C to +90°C baseplate operating temperature
3 year warranty
