ASB75 Series
£0.00
SKU: ASB75 Series

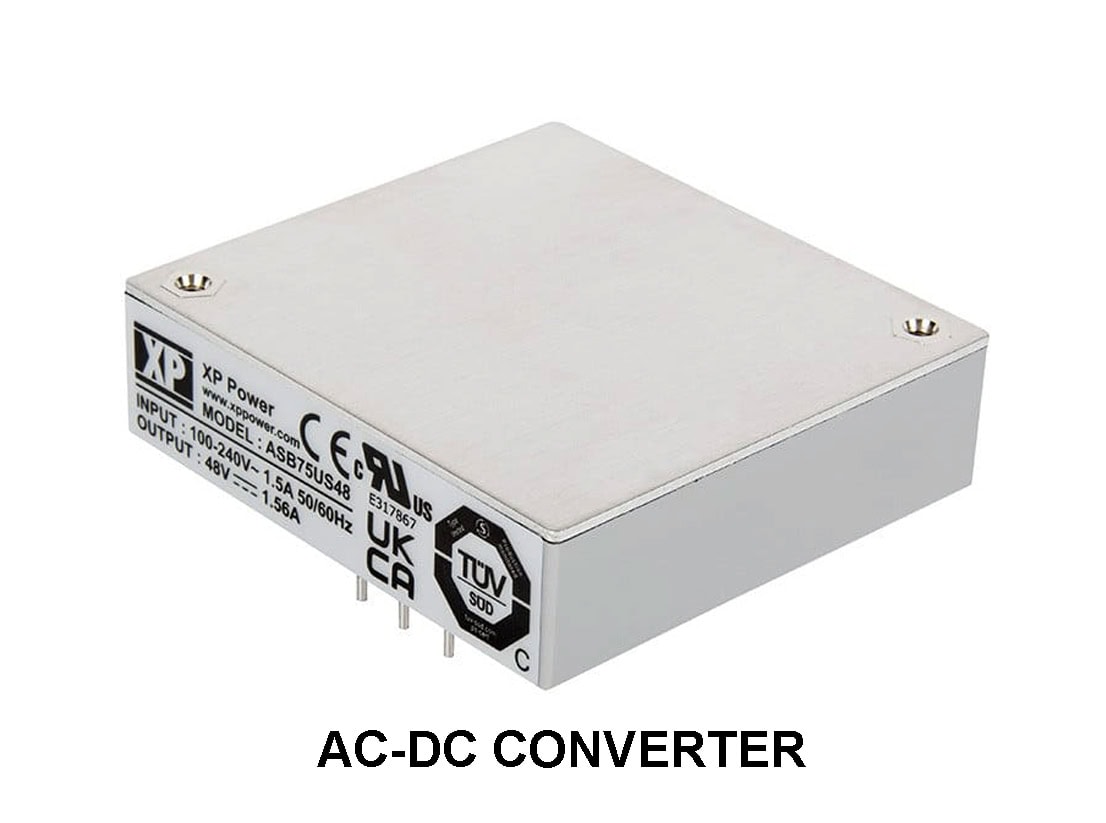

The ASB75 series is a range of 75W low profile, half brick, baseplate cooled AC-DC power supplies which require no external components. The series includes a built in EMC filter and AC fuse as well as bulk storage capacitor providing a complete AC-DC power solution ready for installation into end applications. The ASB75 offers high efficiency to minimise waste heat and heat sinking requirements and operates from -40°C to +85°C on the module baseplate.
Single output voltage versions from 12V to 48V DC
• 75W baseplate cooled
• Complete AC-DC power supply
• No external components required
• Low profile ½ brick package
• Universal input 90 to 264VAC
• High efficiency - up to 90%
• <0.15W no load input power
• Overcurrent, overvoltage and overtemperature protection
• Optional heatsink available
• -40 to +85°C baseplate temperature
• 3 year warranty
