CA Series 1W HV DC-DC
£0.00
SKU: CA Series 1W HV DC-DC

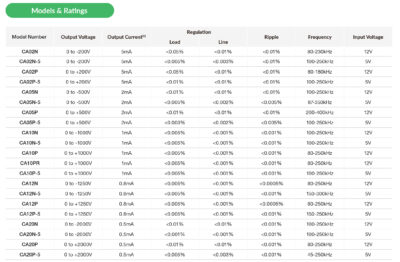

5V and 12V input models. Output voltages from 100V to 2000V.
The CA Series is a high performance, precision regulated, high voltage converter with
high stability and low ripple, along with a built-in voltage monitor output and an on-board precision voltage reference. Each model is programmed from 0 to 100% of rated output via a DAC compatible high impedance programming input. The voltage reference can be used to drive the high voltage output at 100% or to adjust the output with an external potentiometer or voltage divider. The output voltage monitor is internally buffered to provide a low impedance (up to 1mA) signal to external circuitry. A quasi-sinewave oscillator, internal transformer shielding, and an isolated steel case reduce EMI/RFI radiation to extremely low levels.
