CCR200 Series
£0.00
SKU: CCR200 Series

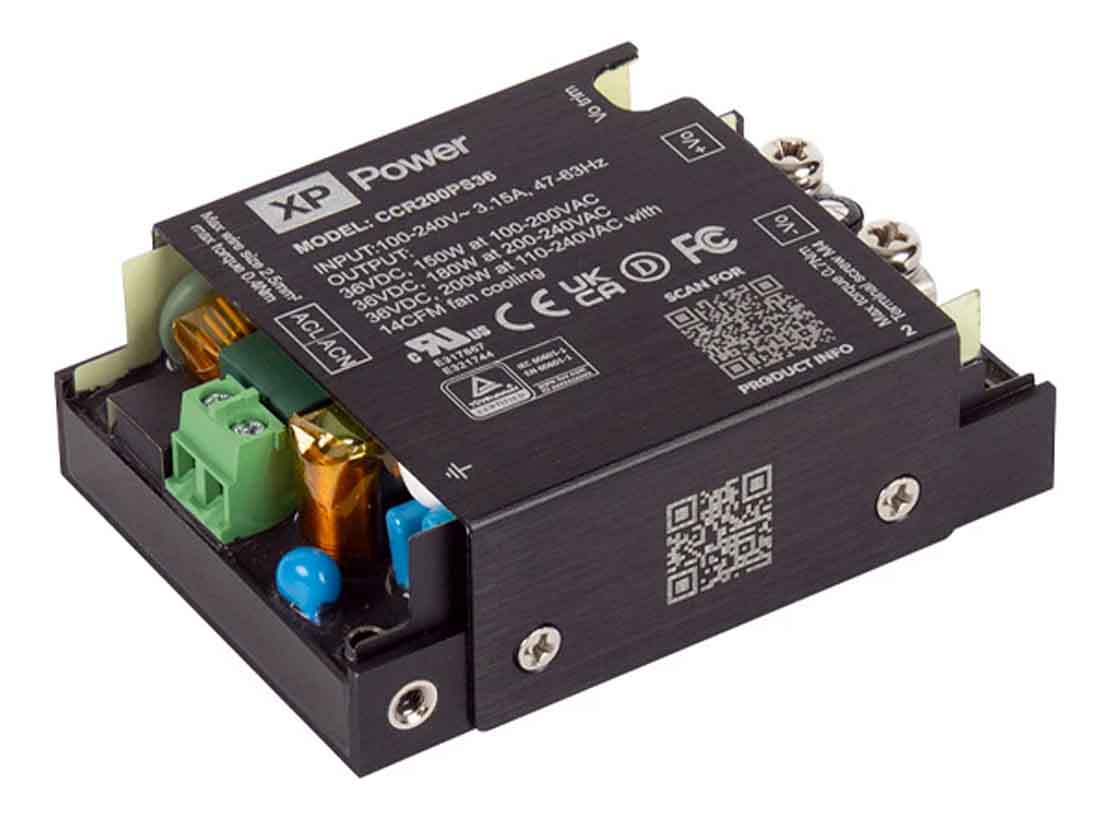

The CCR200 series of compact medical AC-DC power supplies are designed to operate in convection cooled, conduction cooled, and fan cooled applications with power ratings from 110W to 200W. CCR200 offers high efficiency and high power density in a low profile, baseplate cooled design that ensures effective thermal management and quiet operation for noise sensitive applications.
Featuring Class B conducted and radiated emissions, worldwide industrial and medical safety approvals, 2 x MOPP isolation and low leakage currents, the CCR200 is designed for easy integration into a wide range of BF rated medical applications including respiratory care, imaging, patient monitoring, patient treatment, and industrial applications such as process control, test & measurement, and industrial printing.
• 200W fan cooled, 170W conduction cooled
• Universal, single phase input: 85 to 264VAC
• 78.6 x 57.9mm footprint, 25.4mm profile
• High efficiency, up to 94%
• Low earth leakage <300μA
• Low patient leakage <75μA
• Medical versions Class I & Class II
• Medical (BF) & ITE safety approvals
• Class B conducted and radiated emissions
• 3 year warranty
