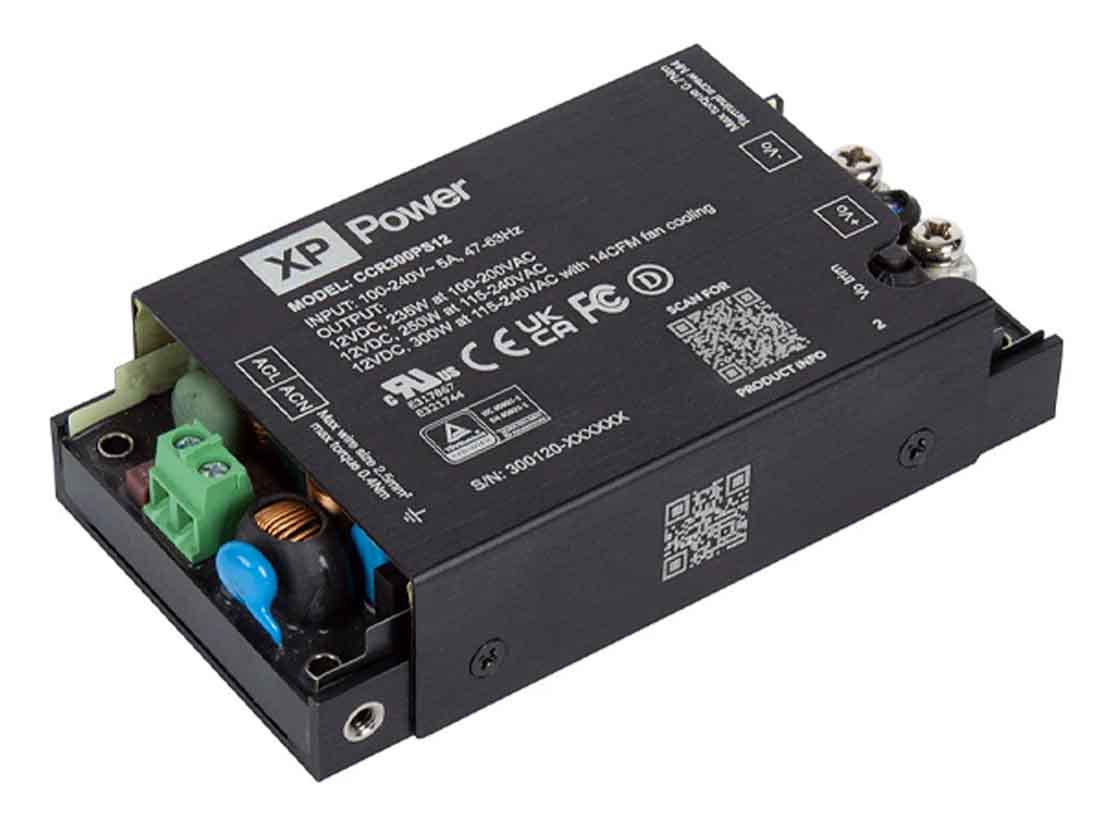

CCR300 Series
£0.00
SKU: CCR300 Series
The CCR300 series of compact medical AC-DC power supplies are designed to operate in convection cooled, conduction cooled, and fan cooled applications with power ratings from 160W to 300W. CCR300 offers high efficiency and high power density in a low profile, baseplate cooled design that ensures effective thermal management and quiet operation for noise sensitive applications.
Featuring Class B conducted and radiated emissions, worldwide industrial and medical safety approvals, 2 x MOPP isolation and low leakage currents, the CCR300 is designed for easy integration into a wide range of BF rated medical applications including respiratory care, imaging, patient monitoring, patient treatment, and industrial applications such as process control, test & measurement, and industrial printing.
300W fan cooled, 250W conduction cooled
Universal, single phase input: 85 to 264VAC
104.0 x 57.9mm footprint, 25.4mm profile
High efficiency, up to 94%
Low earth leakage <300μA
Low patient leakage <75μA
Medical (BF) & ITE safety approvals
Class B conducted and radiated emissions
3 year warranty
