CCR420 Series
£0.00
SKU: CCR420 Series

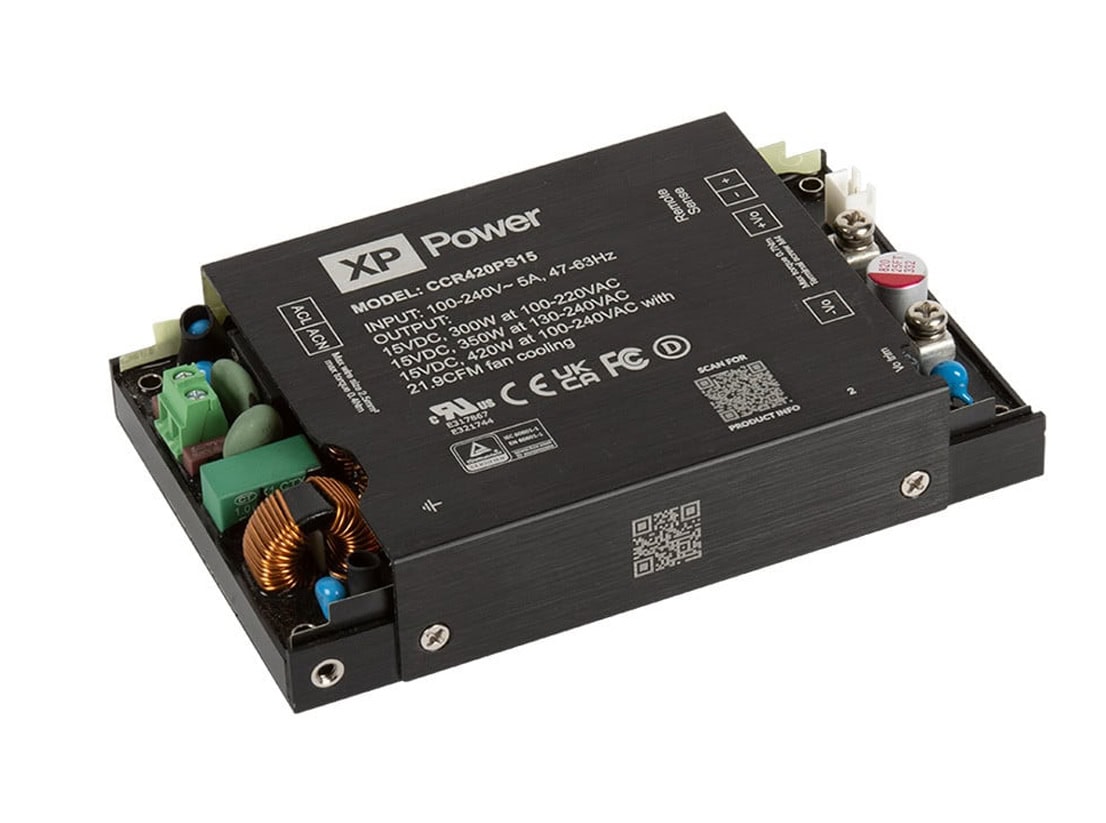

The CCR420 series of compact medical AC-DC power supplies are designed to operate in convection cooled, conduction cooled, and fan cooled applications with power ratings from 280W to 420W. CCR420 offers high efficiency and high power density in a low profile, baseplate cooled design that ensures effective thermal management and quiet operation for noise sensitive applications.
Featuring Class B conducted and radiated emissions, worldwide industrial and medical safety approvals, 2 x MOPP isolation and low leakage currents, the CCR420 is designed for easy integration into a wide range of BF rated medical applications including respiratory care, imaging, patient monitoring, patient treatment, and industrial applications such as process control, test & measurement, and industrial printing.
- 420W fan cooled, 350W conduction cooled
- Universal, single phase input: 85 to 264VAC
- 129.4 x 83.5mm footprint, 25.4mm profile
- High efficiency, up to 94%
- Low earth leakage <300μA
- Low patient leakage <75μA
- Medical (BF) & ITE safety approvals
- Class B conducted and radiated emissions
- 3 year warranty
