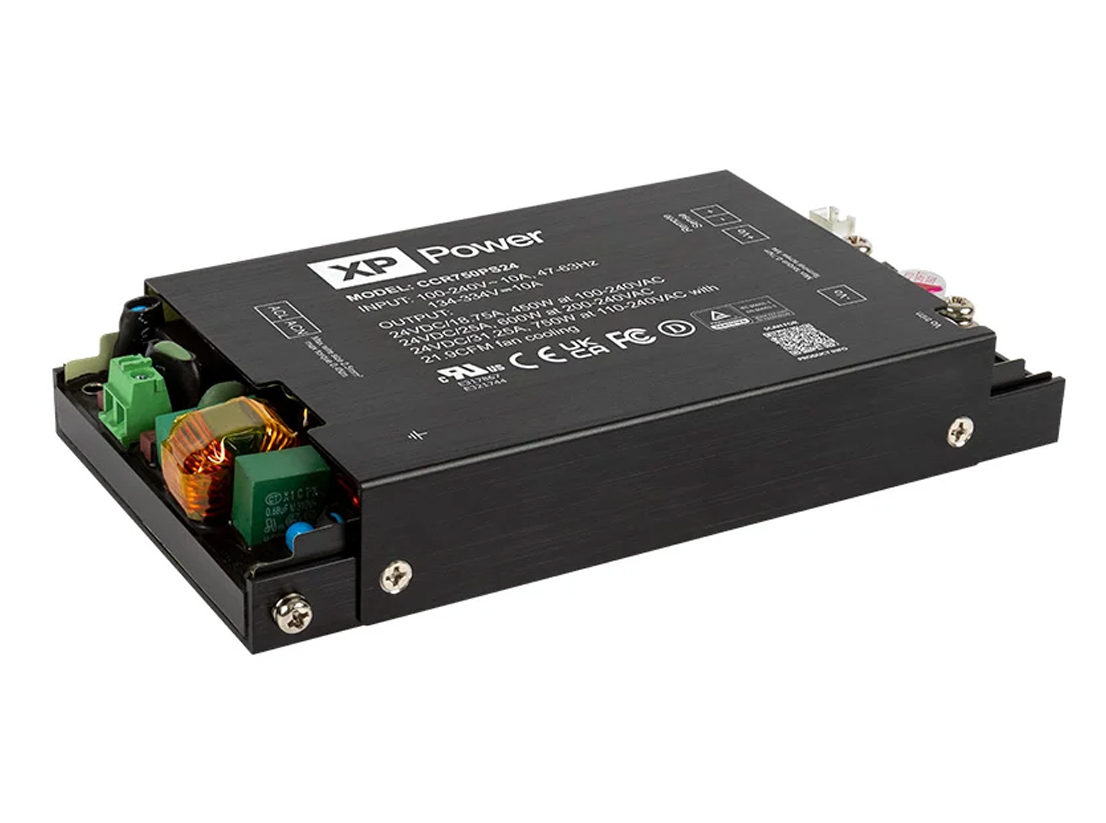

CCR750 Series
£0.00
SKU: CCR750 Series
The CCR750 series of compact medical AC-DC power supplies are designed to operate
in convection, conduction, and fan cooled applications with power ratings from 260W to 750W. CCR750 offers high efficiency and high power density in a low 25.4mm (1") profile, baseplate cooled design that ensures effective thermal management and quiet operation for noise sensitive applications.
Featuring Class B conducted and radiated emissions, worldwide industrial and medical safety approvals, 2 x MOPP isolation and low leakage currents, the CCR750 is designed for easy integration into a wide range of BF rated medical applications including respiratory care, imaging, patient monitoring, patient treatment, and industrial applications such as process control, test & measurement, and industrial printing.
- 750W fan & conduction cooled, 600W conduction cooled
- Universal, single phase input: 85 to 264VAC (120 to 368VDC)
- 154.8 x 83.5mm footprint, 25.4mm profile
- High efficiency, up to 94%
- Low earth leakage <300µA
- Low patient leakage <90µA
- Medical (BF) & ITE safety approvals
- Class B conducted and radiated emissions
- 3 year warranty
