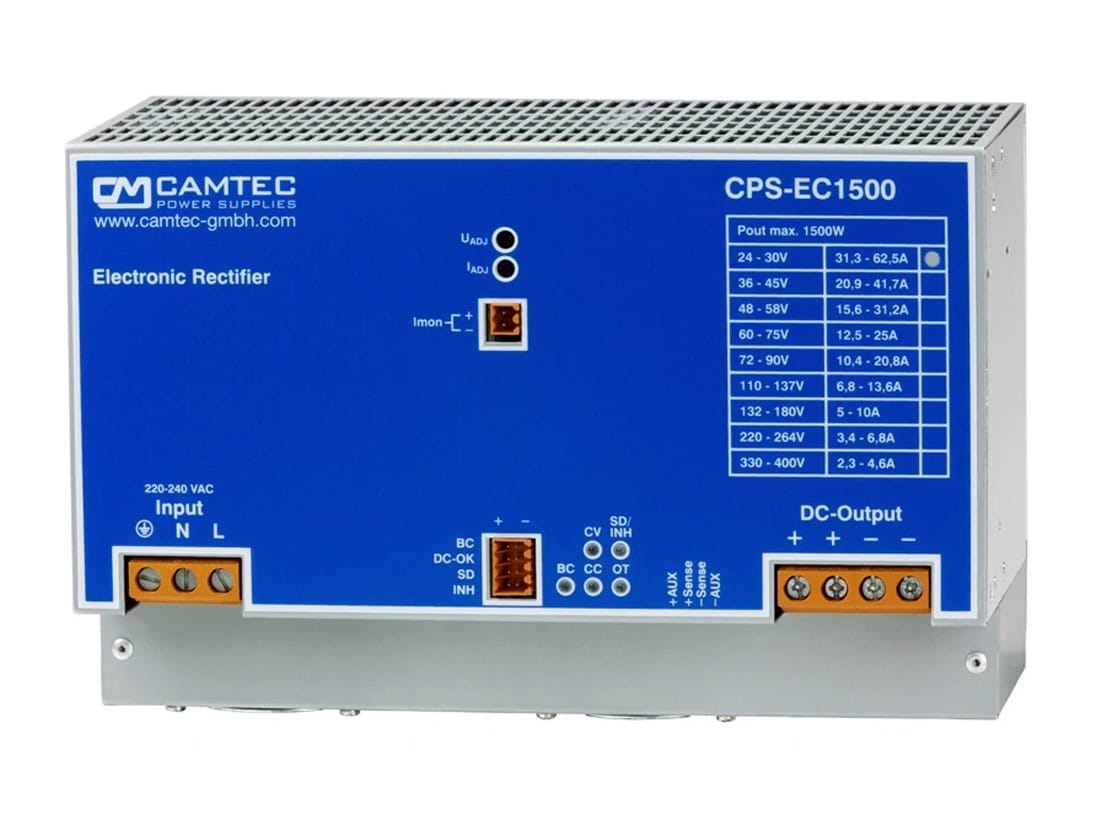

CPS-EC1500 Series 1500W Precision DC Rectifier
£0.00
SKU: CPS-EC1500
1500W Precision DC Rectifier DIN-Rail Battery Charger, A/V Adjustable Industrial Power

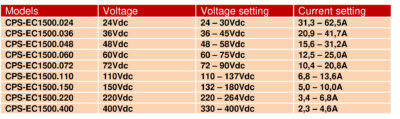

DC output versions available 24V, 36V, 48V, 60V, 72V, 110V, 150V, 220V or 400V DC
• Real time output current monitoring
• Precision potentiometer f. voltage & current
• Power Good Relay AC & DC-ok
• C/V curve down to 0V, no fold back
• Sense control 2V per load line
• Electronic inrush current limiter 20,7Apeak
• Inhibit function (Interlock)
• External shutdown
• Boost Charge Mode
• Precise dynamic response to load change
• Designed for long life under full stress
• Strong input filters
• Hold up time >20ms
• High reliability, shock & vibration proof
• Overload and short circuit protection
• Efficiency up to 94%
• EMI/EMS EN61000-6-2,3, EN55032
• EN61010-1, EN61010-2-201, EN62368-1
