DSF & FSO Series Filter & Surge Protection Modules
£0.00
SKU: DSF & FSO Series Filter & Surge Protection Modules

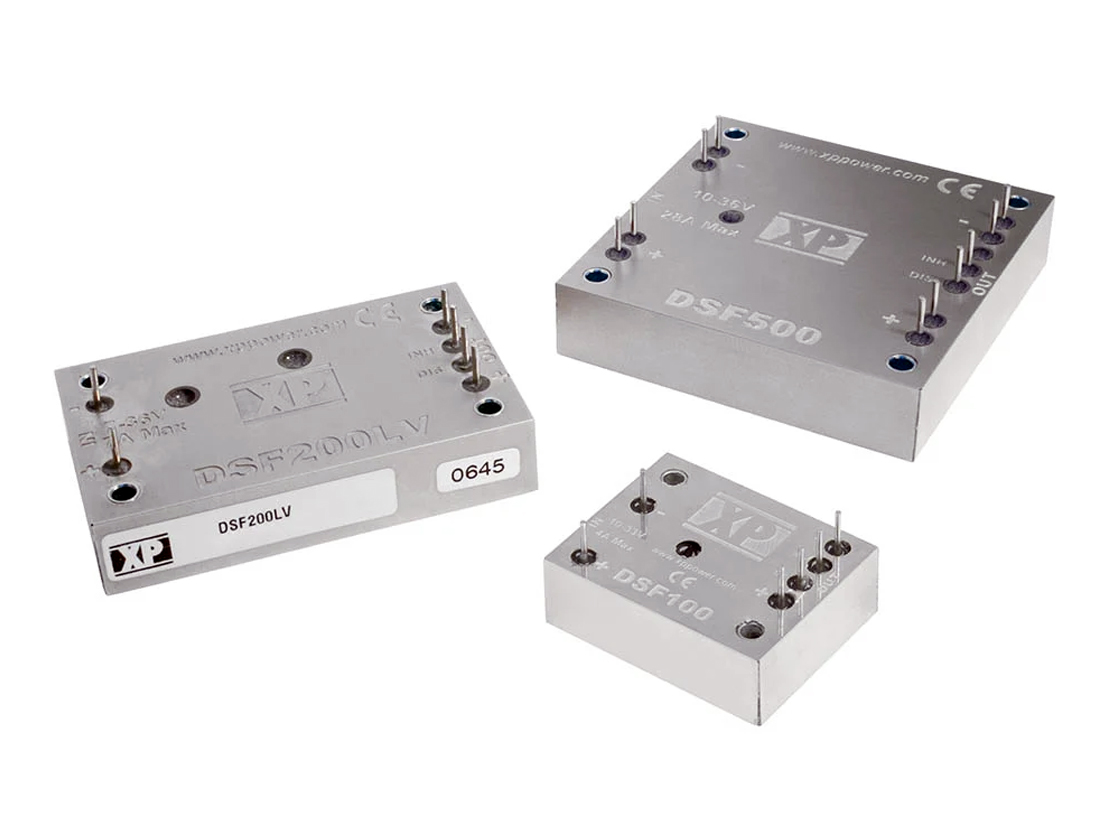

Developed specifically for the defense and avionics market, the DSF100 & DSF200LV are single module EMC filter & surge protectors, whereas the DSF500 surge protector & FSO461 EMC filter must be used in combination to provide the same level of protection. These products offer a high end specification while offering the short lead times and cost benefits of COTS components. Designed to provide active surge protection and EMC filtering for the conducted emissions of DC-DC converters, they also protect against the conducted susceptibility specified in MIL-STD-461G and for surges and spikes as specified in MIL-STD-1275A-E and MIL-STD-704A-F.
- Up to 500W baseplate cooled
- Up to 28A output current
- Active surge protection & EMC filter (DSF100 & DSF200LV)
- Active surge protection (DSF500) & EMC filter (FSO461)
- Output voltage tracks input voltage & clamps <36VDC
- Input range 10V to 33VDC (DSF), 0 to 100VDC (FSO)
- Input transient ±250V for 70μs 2J
- Overtemperature protection
- Remote inhibit
- -40°C to +100°C operating temperature (baseplate)
- 3 Year Warranty
