ECP130 Series
£0.00
SKU: ECP130
100 W Convection/130 W Forced-cooled Ratings, Approved for medical and ITE applications, 2” by 3” Footprint. Single outputs from 12VDC to 48VDC
130W fan cooled 100W convection cooled
76.2 x 50.8mm (3” x 2”) footprint, 28.0mm profile

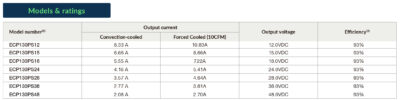

Regulated single outputs 12 to 48VDC
Input range 85 to 264VAC
High efficiency – up to 95%
Medical (2 x MOPP) & ITE approvals
4.0kVAC input to output isolation
<0.5W no load input power
-20°C to +70°C operating temperature
Full load to +50°C
3 year warranty
