ECP225 Series
£0.00
SKU: ECP225 Series

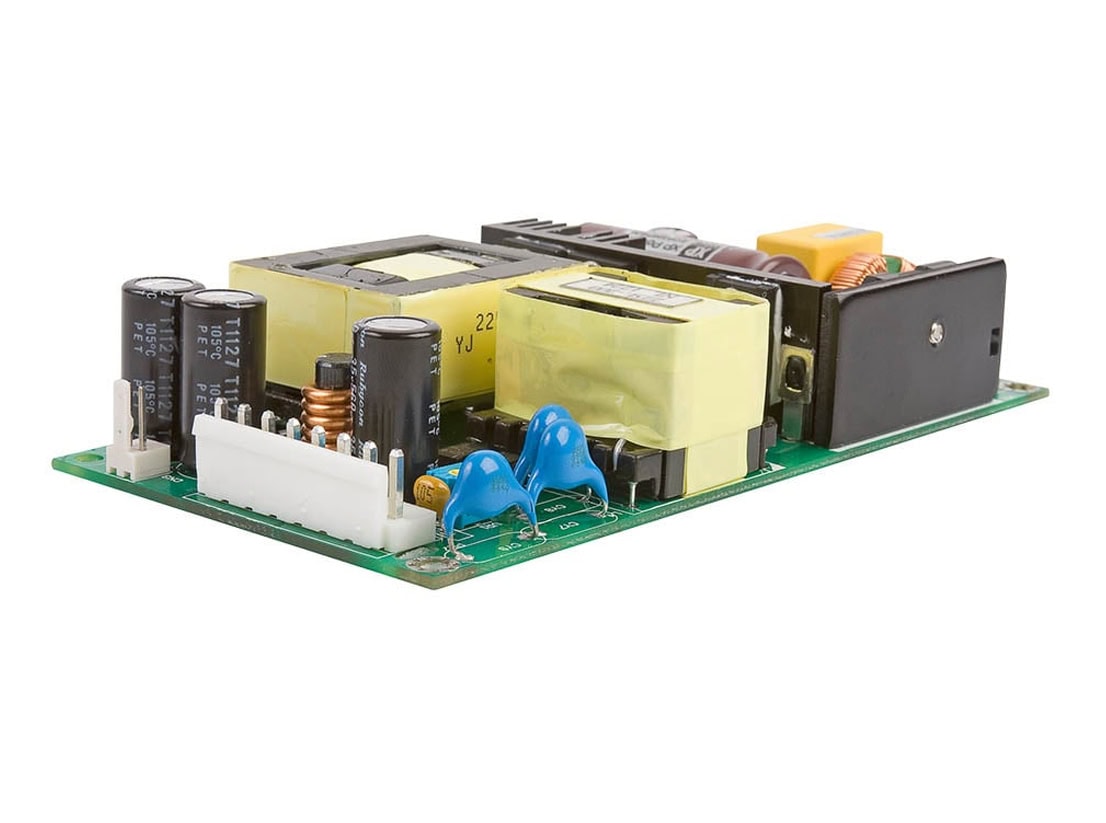

The ECP225 series provides up to 225W force-cooled or 150W convection-cooled leading to very high power density
5 models are available with outputs from 12V to 48V DC. A 12V, 500mA fan supply is included in the design.
- 225W fan cooled 150W convection cooled
- 127.0 x 63.5mm (5” x 2.5”) footprint, 25.4mm profile
- Regulated single outputs 12 to 48VDC
- Input range 85 to 264VAC
- High efficiency – up to 95%
- Medical (2 x MOPP) & ITE approvals
- 4.0kVAC input to output isolation
- <0.5W no load input power
- 12V/0.5A fan supply
- -20°C to +70°C operating temperature
- Full load to +50°C
- 3 year warranty
