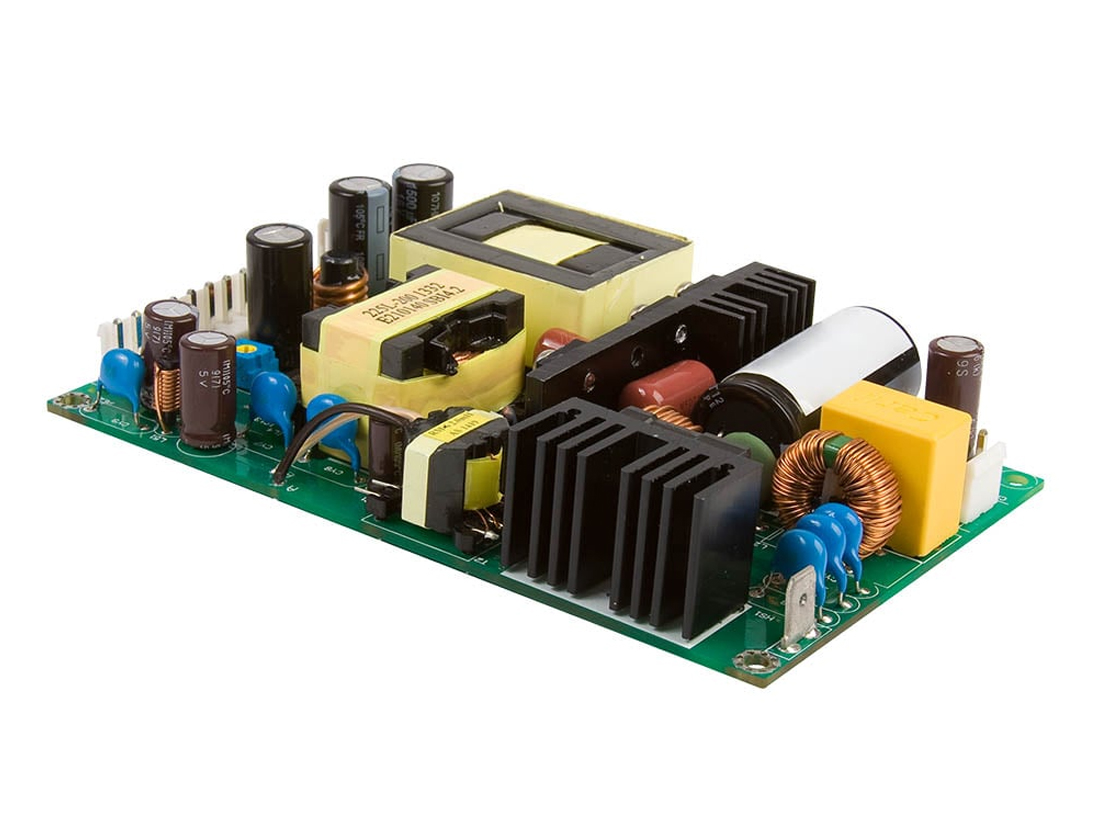

ECP225A Series
£0.00
SKU: ECP225A Series
The ECP225A series provides up to 225W force-cooled or 150W convection-cooled leading to very high power density
5 models are available with outputs from 12V to 48V DC. A 5V standby and 12V 500mA fan supply is included in the design.
- 225W fan cooled 150W convection cooled
- 127.0 x 76.2mm (5” x 3”) footprint, 25.4mm profile
- Regulated single outputs 12V to 48VDC
- Input range 85 to 264VAC
- High efficiency – up to 94%
- Medical (2 x MOPP) & ITE approvals
- 4.0kVAC input to output isolation
- <0.5W no load input power
- 12VDC 0.5A fan supply
- 5VDC 1A (convection) 5VDC 2A (fan) standby
- -20°C to +70°C operating temperature Full load to +50°C
- 3 year warranty
