ESB001 Series
£0.00
SKU: ESB001

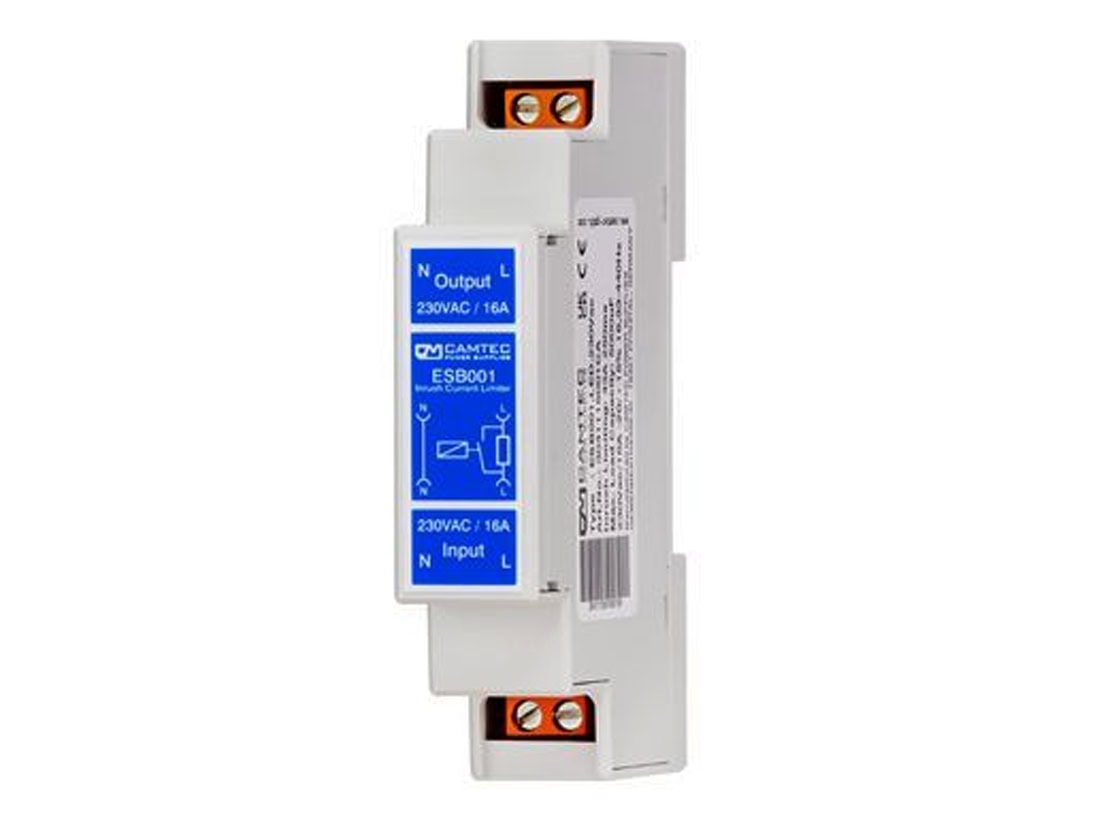

The ESB001 is a budget-priced inrush peak current limiter for high loads in LED-applications, complex automation systems and in the machine building. The ESB001 offers effective and interference free operation with capacitive loads. It is simple to integrate into existing equipment. The ESB001 is self- powering and does not require an external power supply.
• Peak- / R.M.S. inrush current limiter
• 184-264Vac, 16A continuous
• Power consumption 1,1W @ 230Vac
• DIN TS35mm DIN-Rail
• Wall mount (universal case)
• Spring-type terminals 4mm² / 12AWG
• Integrated bypass relay
• Capacitive load 2.200uF & 5.000uF
• Integrated thermal protection
• IP20 UL94V-0 case DIN43880
for DIN/VDE0603 cutout box
• EN62368-1, EN55032 class B
