ESB00163-ESB00323 Series
£0.00
SKU: ESB00163-ESB00323

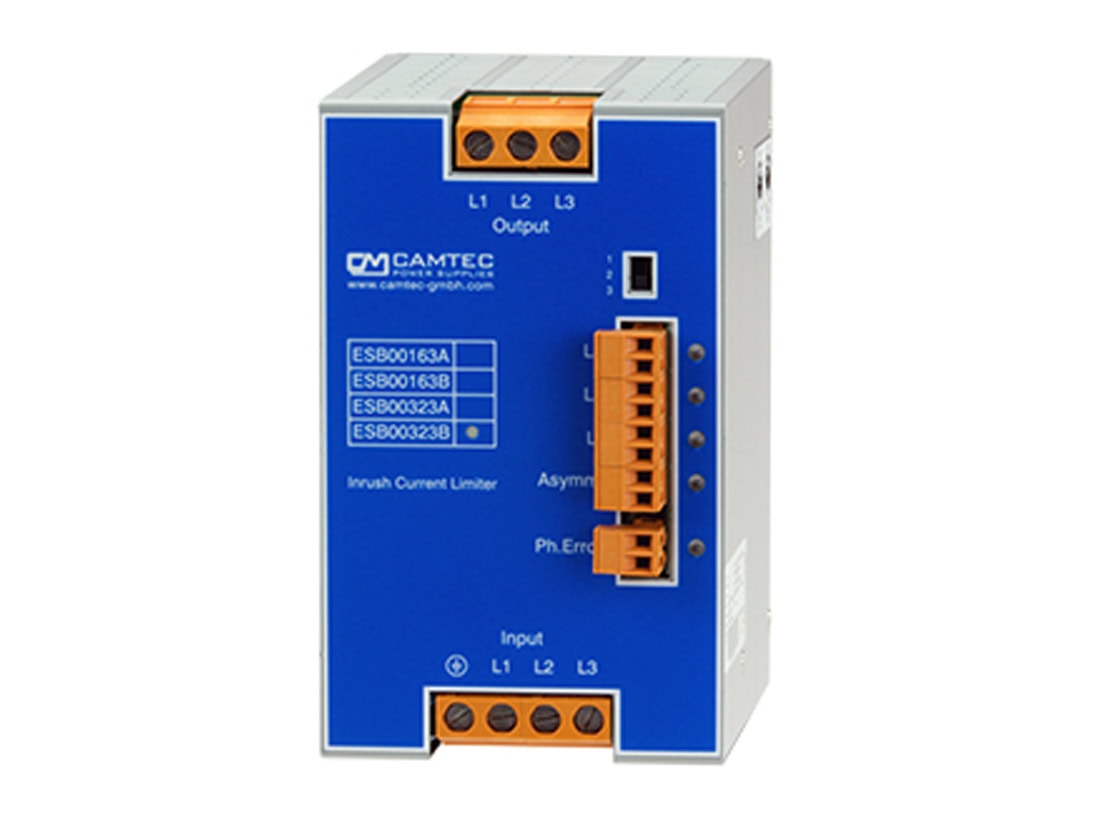

The ESB00163 and the ESB00323 are industrial rated peak current inrush limiters for high loads in LED-applications, complex automation systems and in the machine building. The ESB offers effective and interference free operation with capacitive loads. The ESB is self- powering and does not require an external power supply. The units feature an integrated phase controller. It allows to monitor each AC line independent from each other. Also, each AC line is being limited independent from each other.
The ESB is no simple NTC solution. The units allow precise accurate repeatable limiting of the peak inrush. The ESBs protect the installed circuit breakers from tripping accordingly.
• Peak- / R.M.S. current limiter
• 200/400/500Vac 3ph 16A/32A
• DIN TS35mm DIN-Rail
• Wall mount (universal housing)
• Spring-type terminals 16mm² / 22-8AWG
• Integrated bypass relay
• Capacitive load 2.000uF
• Integrated over temperature protection.
• EN62368-1, EN55032 class B
