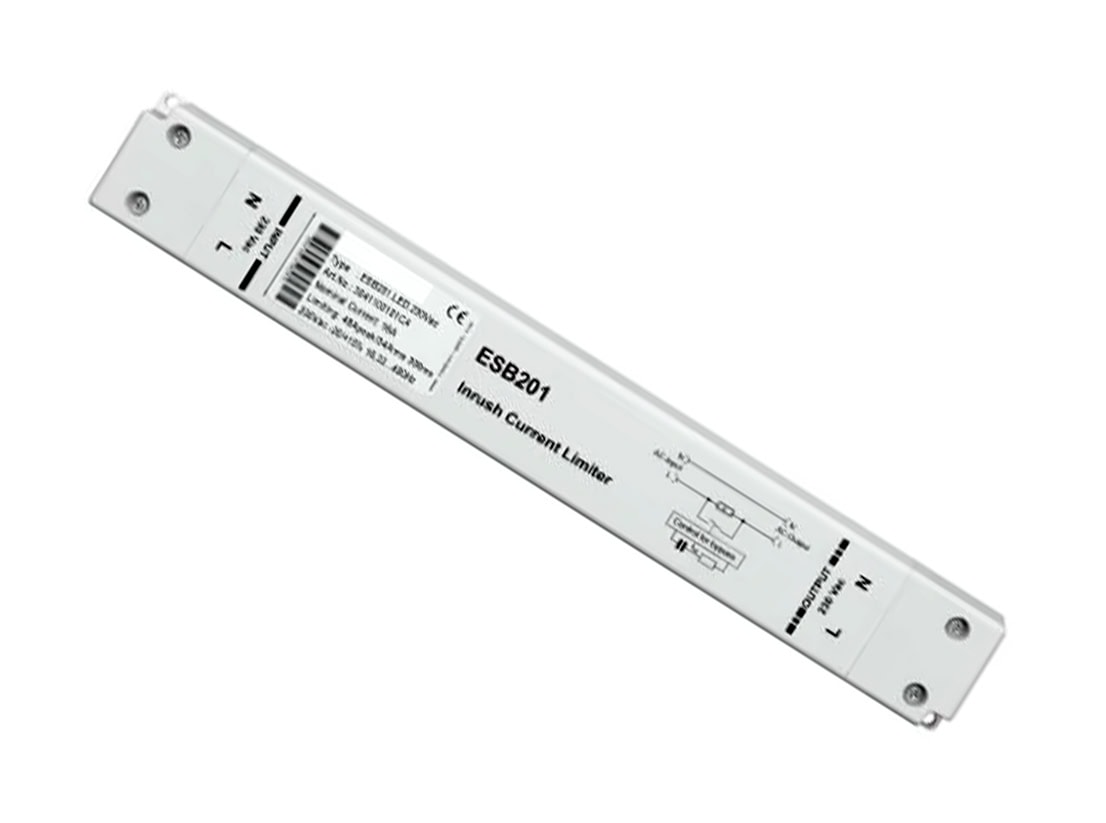

ESB201
£0.00
SKU: ESB201
The ESB is a budget-priced inrush peak current limiter for high loads in LED-applications, complex automation systems and in the machine building. The ESB201 offers effective and interference free operation with capacitive loads. It is simple to integrate into existing equipment. The ESB201 is self- powering and does not require an external power supply.
• Peak- / R.M.S. inrush current limiter
• 90-132Vac / 184-264Vac, 16A continuous
• Very 35mm low profile housing IP40
• Spring-type terminals 6mm² / 10AWG
• Integrated bypass relay
• Capacitive load 6000uF up to 10.000uF
• Integrated thermal protection
• IP40 UL94V-0 ABS-PA765 case
• EN62368-1, EN55032 class B
