GCU500 Series
£0.00
SKU: GCU500 Series

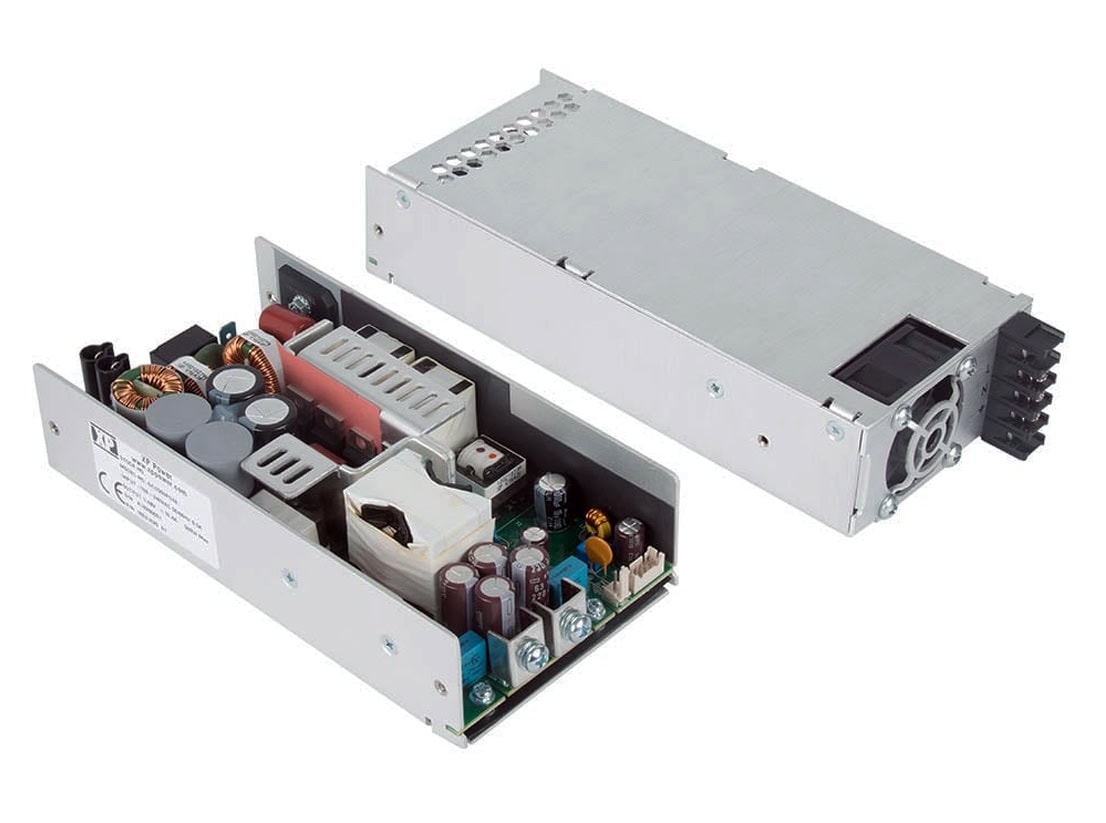

The GCU500 is packaged in a 3.3” x 6.5” x 1.55” package and achieves EN55011/32 Level B conducted emissions compliance whilst maintaining very low earth leakage currents, making it suitable for a wide range of 1U and other industrial, IT and medical applications.

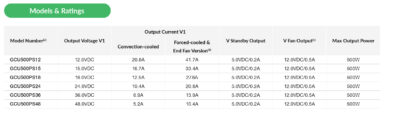

The series has single output versions from 12V to 48VDC, dual-fusing for compliance with IEC60601-1 and features minimal waste heat as efficiencies reach 93%. The GCU500 delivers up to 500W of power over an operating range of -40°C to +70°C and offers remote on/off control and power fail signal along with 5V standby and fan supplies.
• 250W convection and 500W forced-cooled ratings
• 5V standby output
• Universal 80 to 264VAC input
• IT and medical safety approvals
• -40°C to +70°C operation
• Power fail, remote On/Off and remote sense
• Class B emissions
• 3 year warranty
