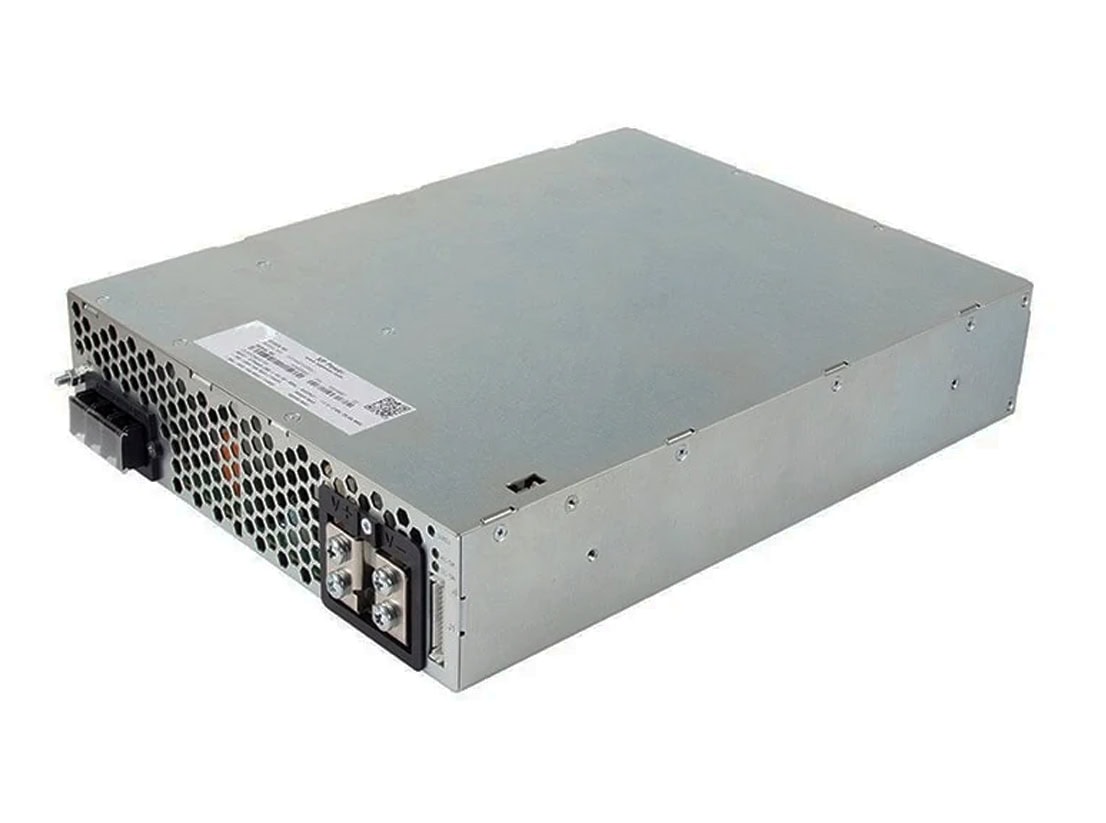

HPT5K0-L
£0.00
SKU: HPT5K0-L
The HPT5K0-L series offers ultimate flexibility with both output voltage and output current
programming and user defined signals, warnings and alarms. Programming is via voltage,
I2C PMBus, RS485 and CANopen in a very high efficiency, high power density 5kW chassis
mount package. The HPT-L can be used in both constant voltage and constant current
operation.
Measuring just 13.25” x 10.00” x 2.50” the HPT5K0-L also features active current sharing,
remote on/off, remote sense and a power OK signal. The standby output is available
whenever the mains supply is present.
3 phase 180 to 528VAC input - 3 wire and earth
High efficiency - up to 94%
Programmable output voltage (0-105%)
Programmable output current (0-110%)
Parallel operation
Analog and digital interfaces
Multiple digital protocols - PMBus, CANopen,
MODBUS and SCPI
Fully featured signals and controls
5V/2A standby output
Graphical user interface (GUI)
SEMI F47 compliant
3 year warranty
