JB320 Series
£0.00
SKU: JB320 Series
The JB320 series is a single output 320W power supply with auto ranging AC input

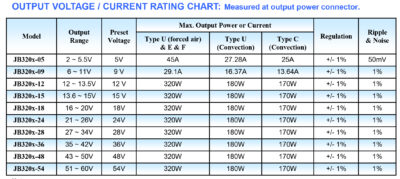

10 different models available with single outputs from 2V to 60V DC
- Compact 320W with 1U height Power Density: 8.9 watts/cu in
- Low Leakage Current 500uA @ 240Vac / 300uA @ 120Vac
- Power Factor Corrected to EN61000-3-2 class A
- Peak Power 700W within 500uS Duty Duration
- Variable Fan Speed & Low Acoustical Noise
- High Quality & Reliable Component Usage
- Approved to UL CUL TUV CB and CE.
- AC Input Range Auto-Selectable
- Output Voltages from 2 ~ 60Vdc
- 4 - Mechanical Options
