MHP 650 Series
£0.00
SKU: MHP 650 Series

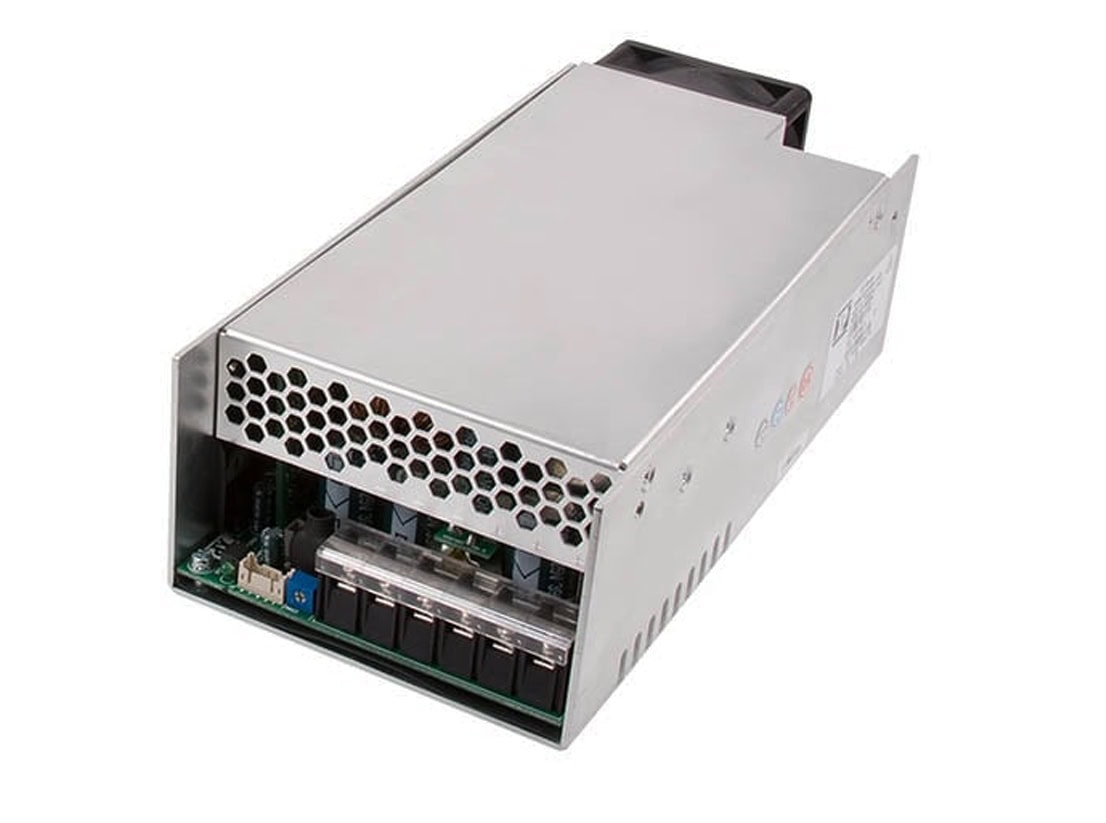

The MHP650 AC-DC power supply provides up to 650W of output power in three
mechanical packages to provide installation flexibility in a range of medical applications.
The unit comprises of a main output with voltages from 12V to 48VDC and two peripheral
outputs providing a 12VDC 0.5A fan supply and a 5VDC 0.5A standby supply which can be
utilised with the signals and control features of the unit to provide detection of loss of AC
input and remote on/off control.
Multiple units can used in parallel via the current share facility, providing higher power
solutions. Inherently low earth leakage current, and conducted EMC compliance to Class B
also simplify higher power system design.
- 650W fan cooled
- Regulated single outputs 12V to 48VDC
- Input range 80 to 264VAC
- Medical safety approvals
- Rugged construction
- Variable fan speed for noise reduction
- AC OK, remote On/Off and active current share
- Screw terminals
- 5VDC 0.5A standby
- 12VDC 0.5A fan supply
- -20°C to +70°C operation
- 3 year warranty
