MTC05 Series
£0.00
SKU: MTC05 Series

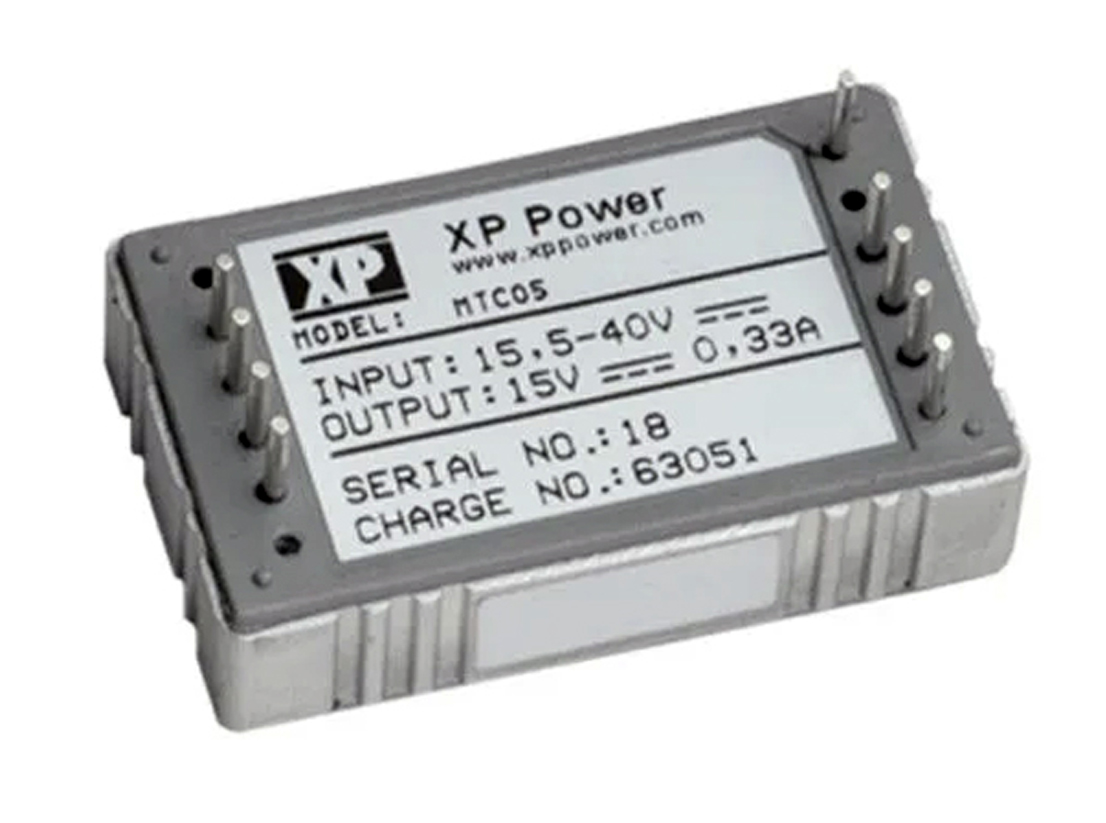

The MTC05 is a COTS 5W DC-DC converter developed specifically for the defence and avionics
market. This product has a full military specification while offering the short lead-times and
cost benefits of a COTS component.
The MTC05 uses a forward converter design switching at 450kHz giving excellent size,
efficiency and EMC performance. The input range is designed to provide short term
operation over 10V to 50VDC to enable the converter to work at full power through the
dips and surges commonly seen in vehicle and aircraft applications. A soft start circuit
provides well controlled outputs with no overshoot.
Comprehensive control functions such as voltage trim, remote sense, inhibit and frequency
synchronization to an external source are standard features. When used in conjunction with
the MTF input filter module the MTC05 complies to MIL-STD-461; MIL-STD-1275;
MIL-STD-704
Regulated single outputs 32.0 x 19.3 x 8.7mm (1.26” x 0.76” x 0.34”)
10-50VDC input range
Baseplate cooled
1.5kVDC isolation
Remote sense
Remote On/Off
-40°C to +100°C operating temperature
3 year warranty
