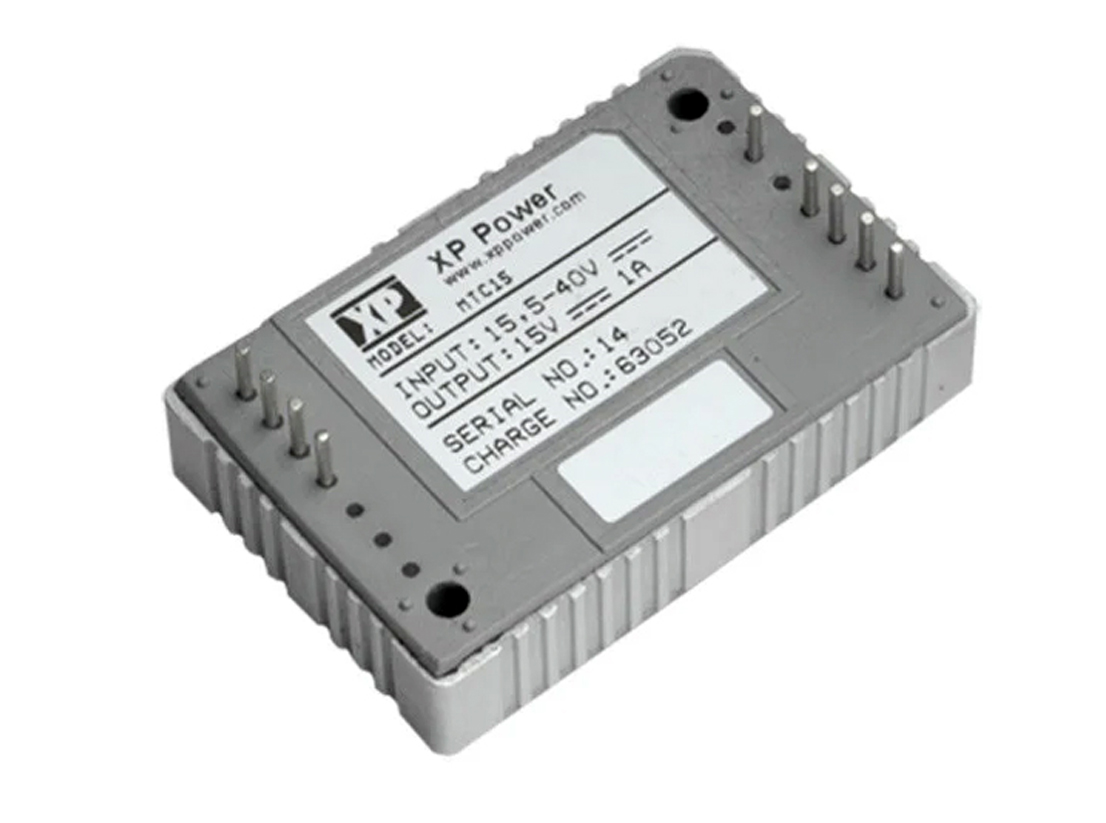

MTC15 Series
£0.00
SKU: MTC15 Series
The MTC15 is a COTS 15W DC- DC converter developed specifically for the defence and avionics market. This product has a full military specification while offering the short lead-times and cost benefits of a COTS component.
The MTC15 uses a forward converter design switching at 450kHz giving excellent size, efficiency and EMC performance. The input range is designed to provide short term operation over 10V to 50VDC to enable the converter to work at full power through the dips and surges commonly seen in vehicle and aircraft applications. A soft start circuit provides well controlled outputs with no overshoot.
Comprehensive control functions such as voltage trim, remote sense, inhibit and frequency synchronization to an external source are standard features. When used in conjunction with the MTF input filter module the MTC15 complies to MIL-STD-461; MIL-STD-1275; MIL-STD-704.
Regulated single outputs 3.3V to 28VDC
Regulated dual outputs ±12V & ±15VDC
10V to 50VDC input range
Baseplate cooled
Designed for vetronic & avionic use
MIL-STD-461 & DEF-STAN-59-411
MIL-STD-1275 & DEF-STAN-61-5
-40°C to +100°C operating temperature
-55°C operation available on certain models
3 year warranty
