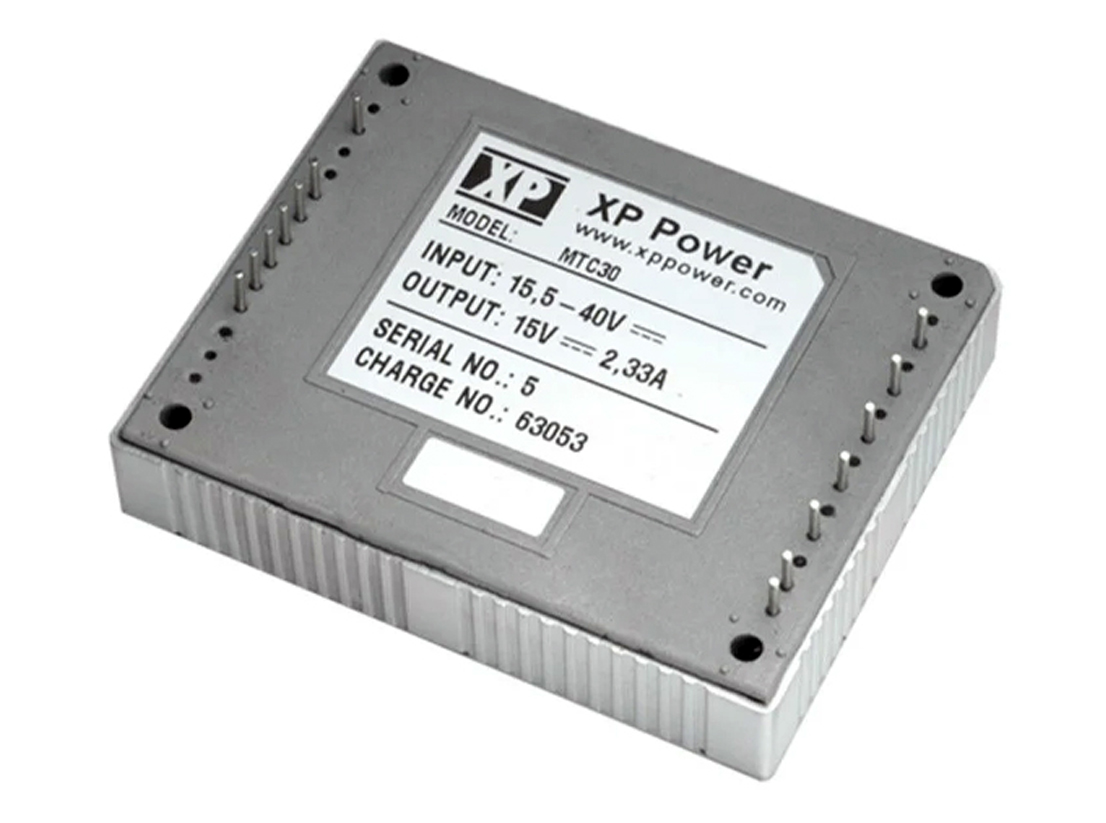

MTC30 Series
£0.00
SKU: MTC30 Series
The 30W MTC30 uses a forward converter design switching at 450kHz giving excellent size, efficiency and EMC performance. The input range is designed to provide short term operation over 10V to 50VDC to enable the converter to work at full power through the dips and surges commonly seen in vehicle and aircraft applications. A soft start circuit provides well controlled outputs with no overshoot. Comprehensive control functions such as voltage trim, remote sense, inhibit and frequency synchronization to an external source are standard features. The MTC30 contains an over temperature warning signal that gives user control over the temperature shutdown function of the converter. The internal filtering meets the conducted emission requirements of MIL-STD-461 without external components. When used in conjunction with the MTF input filter module the MTC30 complies to MIL-STD-461; MIL-STD-1275 and MIL-STD-704.
- Regulated single outputs 5V to 28VDC
- Regulated dual output ±15VDC
- 10V to 50VDC input range
- Baseplate cooled
- Designed for Vetronic & avionic use
- MIL-STD-461 & DEF-STAN-59-411
- MIL-STD-1275 & DEF-STAN-61-5
- -40°C to +100°C operating temperature
- -55°C operation available on certain models
- 3 year warranty
