Nanoflex Series
£0.00
SKU: Nanoflex

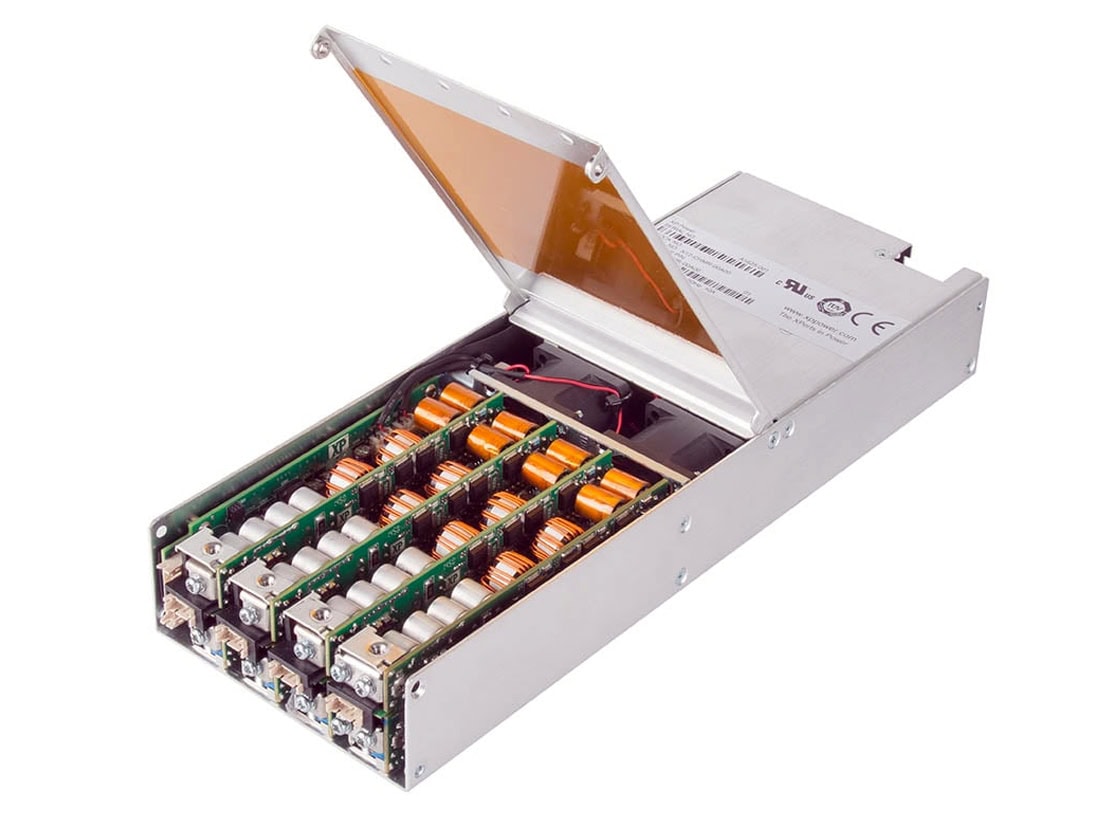

The N12 nanofleX configurable 1U power supply has been designed to maximize efficiency
and minimize audible fan noise to combat the traditional challenges associated with low
profile configurable products. The chassis can provide 850W with universal input or 1200W
with high line (or line to line) with up to 4 outputs. These outputs are customer selected from
a wide range of fixed or variable voltages between 3.3V and 60VDC. The N12 is suited to
Industrial (IEC 62368) and Medical (IEC 60601) applications with earth leakage current below
300μA whilst returning excellent emission performance. This fully featured power supply can
be controlled with both analogue and digital (I2C) commands, provides a full 10W (5V/2A)
standby rail and a range of connectivity options.
• Configurable power supply
• Low profile for 1U applications
• Medical and ITE approvals
• Power from 850W at low line to 1200W at high line
• Output voltages from 3V3 to 60V
• Module power up to 300W
• Parallel options for increased versatility
• PMBus digital interface
• Graphical user interface (GUI)
• Optional reverse air fans with no load derating
• SEMI F47 compliant
• 3 year warranty
