PAE1500 Series
£0.00
SKU: PAE1500 series

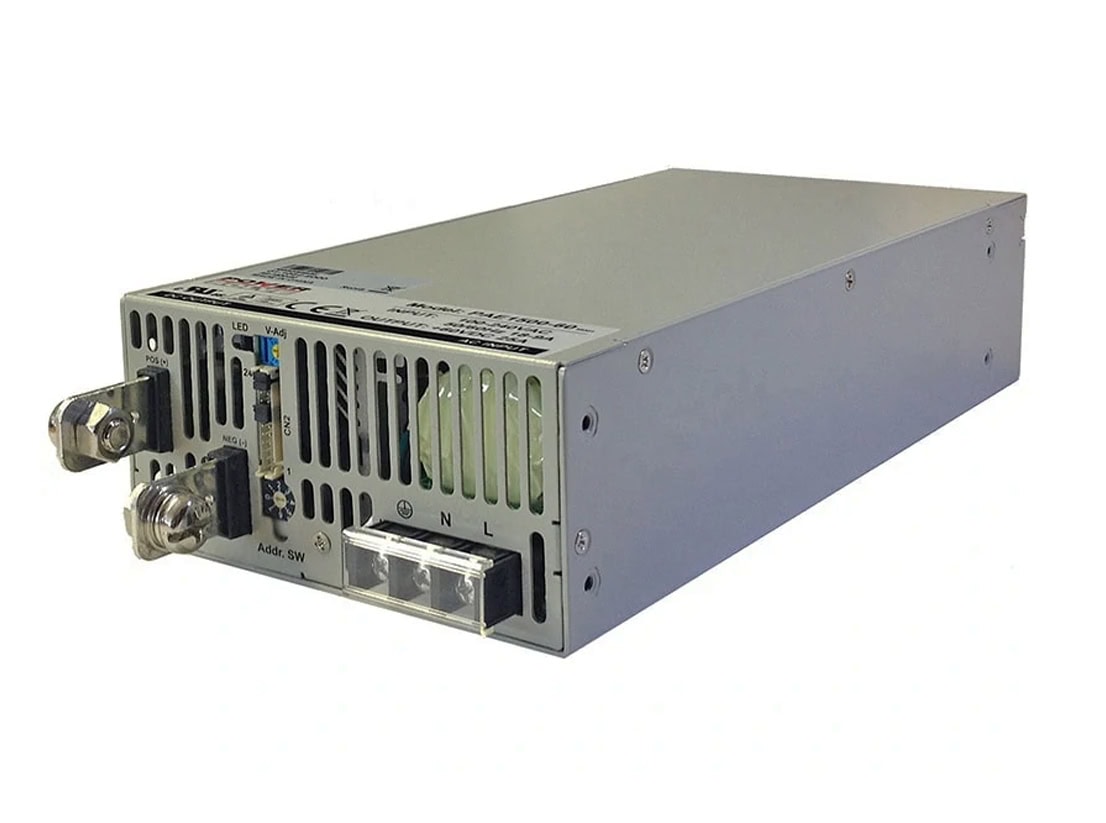

PAE1500 Series is a single output 1500W power supply. 7 models with DC outputs programmable from 0-105% for both Voltage and Current. Nominal outputs from 12V to 60V DC
Features:
Universal AC Input
Programmable output Voltage & Current (0-105%)
Forced Current Sharing in parallel operation
(Refer to page 5 for connection diagram)
Constant current limit
Selectable +5V 0.5A or +9V 0.3A auxiliary output
Global control via UART (5V TTL)
Remote setting multiple PSU via UART (5V TTL), I²C & RS485 (Optional)
Power OK signal
Remote ON/OFF and Remote Sense
Protection: OVP, OLP, OTP, Fan Failure
Built in active PFC Function
