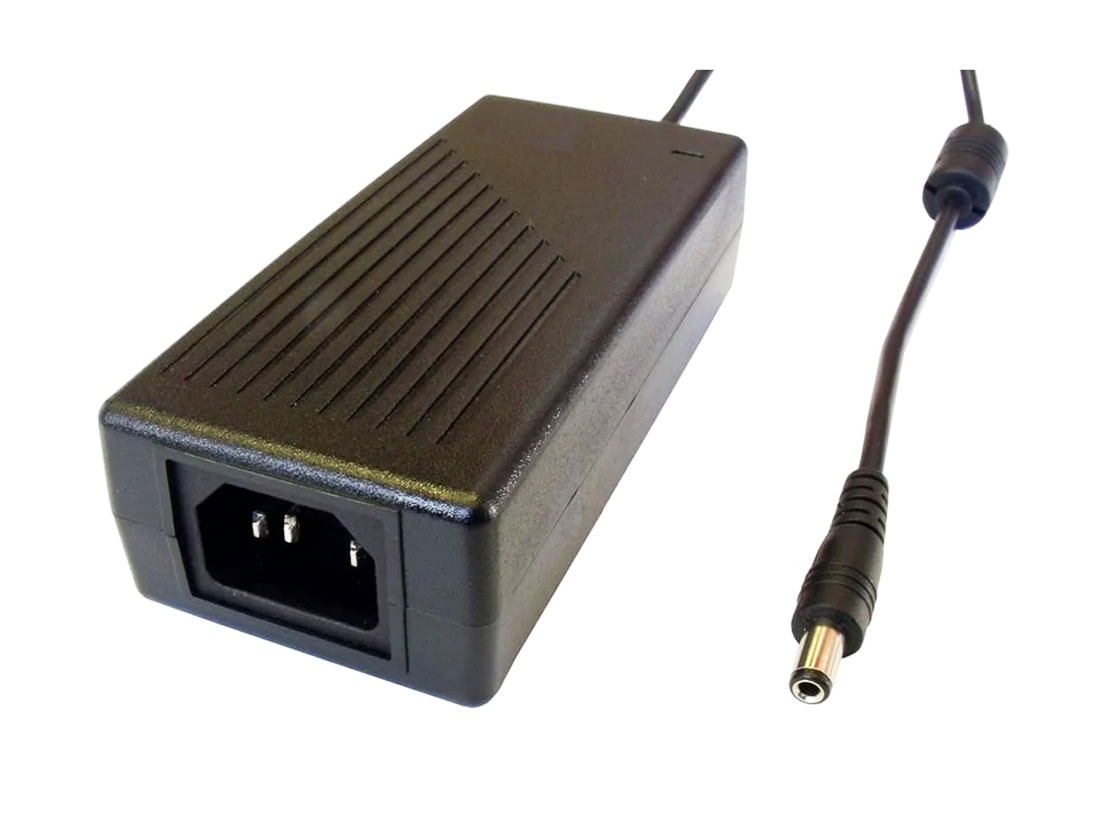

30-60 Watt Switch Mode, Universal AC Input

Features

•  Universal Input Range 90-264VAC

•  Overvoltage, Over Current & Short Circuit Protection

•  Conductive EMI Meets CISPR 22

•  CEC Level V1  Compliant

•  Optional Output Connectors

Electrical Specification

Rated Input Voltage 100-240VAC

Input Voltage Range 90-264VAC

Frequency 47-63Hz

Inrush Current 60A max. at 240VAC input with rated load & 25°C ambient

Input Leakage Current 0.25mA max. at 240VAC

Output Voltage See table on the datasheet

Output Current See table on the datasheet

Turn On Delay 3 seconds max. at 100VAC input & max. output load

Rise Time 100ms max. at 100VAC input & max. output load

Hold-up Time 5mS min. at 100VAC input & max. output load

Overshoot 15% max. when power supply on or off

Short Circuit Protection Continuous, auto recovery when fault removed

Over Current Protection Autorecovery when fault removed

Over Voltage Protection 120-150% of Vout nom., auto recovery when overvoltage removed

Operating Temperature Range 0°C to +40°C

Operating Humidity Range 5-90%

Storage Temperature Range -10°C to +55°C

Cooling Natural convection

Vibration Operating IEC 721-3-3 3M3

Vibration Transportation IEC 721-3-2 2M2

Safety Approvals EN60950, EN60650, IEC60065, EN60065, UL60065, GB8898

EMC Standard EN55022, EN55024, GB9254-1998 (CISPR22)

Dimensions 120 x 54 x 33 mm

Weight 280g

AC Inlet IEC320/C14
