QSB600 Series
£0.00
SKU: QSB600 Series

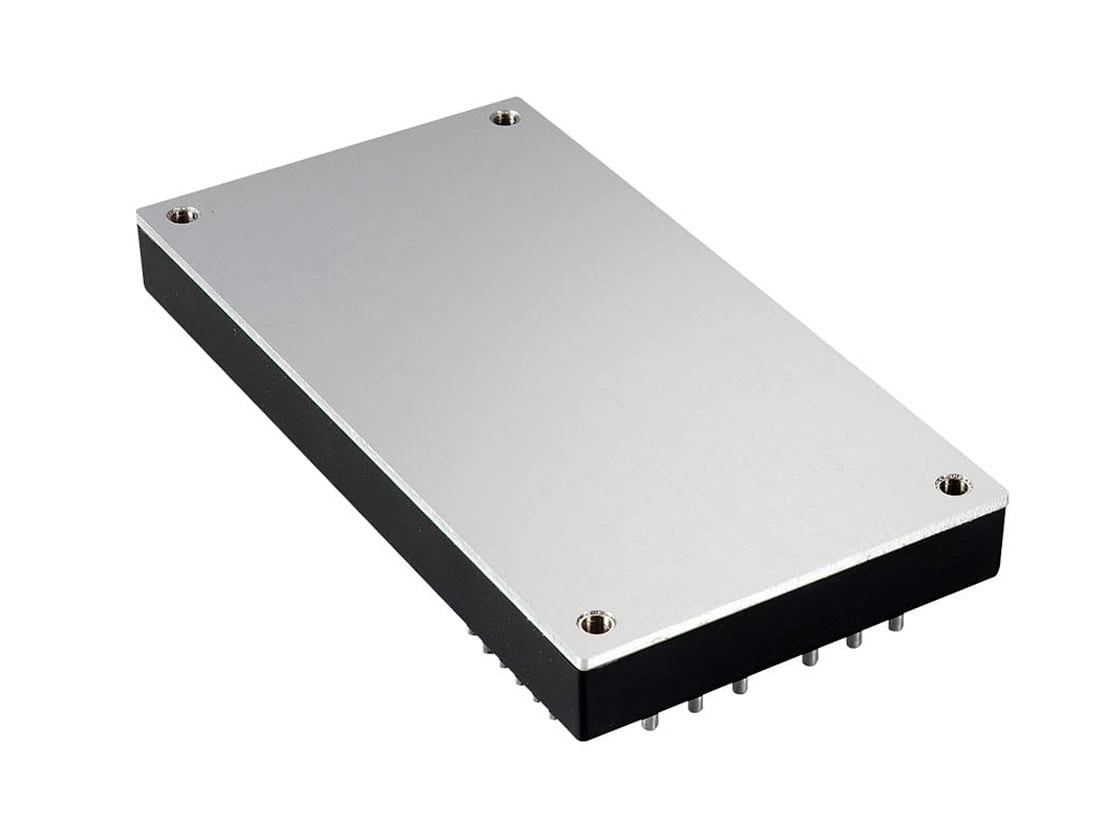

The QSB600 series offers a compact 600W DC-DC converter solution in an industry standard full brick package, with integral baseplate for conduction cooling. Available in two input ranges, covering 9V to 36VDC & 18V to 75VDC. Standard features are: output voltage trim, remote sense, remote On/Off, a wide operating temperature range and includes protection for over current, over temperature and over voltage. The QSB600 is highly suited to telecommunications, distributed power architectures, battery operated equipment, industrial electronics, mobile equipment and many other applications.
- Regulated single outputs 5V to 48VDC
- Baseplate cooled full brick package
- 1.5kVDC isolation
- Output trim 60% to 110%
- Remote sense
- Remote On/Off
- -40°C to +100°C operating temperature
- 3 year warranty
