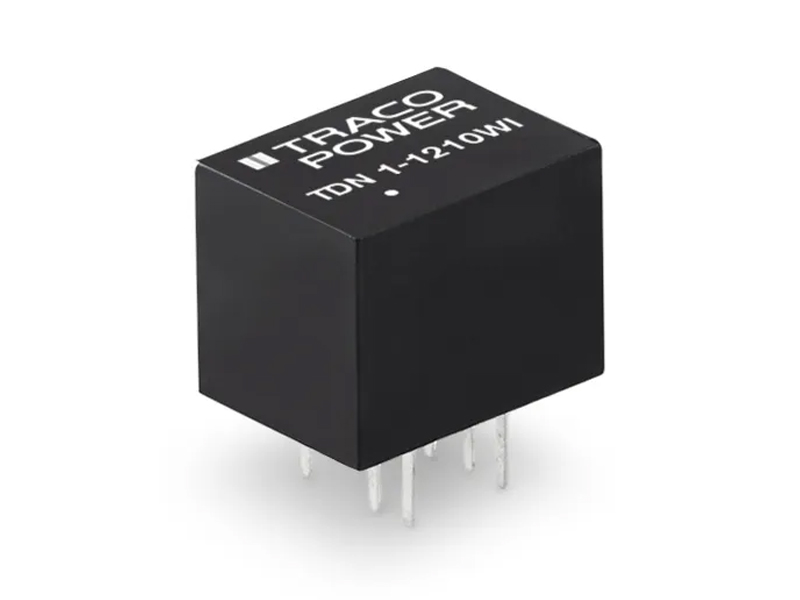

TDN 1WI Series
SKU: TDN 1WI-1
1 Watt fully regulated, high performance DC/ DC converters Compact DIP package
13,2 x 9,1 x 10,2 mm
The TDN 1WI Series comprises 1 Watt fully regulated, high performance DC/DC converters.
They come in a compact cubical package of only 1.23 cm3.
Full load operation is reliable up tp 90°C environment temperature.
With 1’600 VDC I/O-isolation voltage, external On/Off, and short current protection they cover a
wide range of application when space is limited.
The input of the converters is designed for a wide voltage range (4:1) and minimum load is not required.
The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test
voltage (60 s) of 1500 VDC.
