TEC 3 Series
SKU: TEC 3-1
3 Watts single and dual output, 2:1 input range Compact SIP-8 package
TEC 3 is a new series with the design purpose to improve the prevalent 3 Watt SIP-8 DC/DC converters in terms of cost, efficiency and performance.
The latest technology and components effectuate a high efficiency for a low thermal loss.
This enables an operating temperature range from -40°C up to +90°C.
The converters are fully regulated over 0 - 100% load (no minimum load is required).

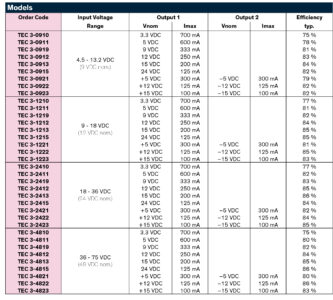

The low input range input is extended from 4.5 to 13.2 VDC while models are also available with the standard 2:1 input ranges of 9-18, 18-36 and 36-75 VDC (see TEC 3WI series for 4:1 input ranges).
The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
