TEC 3WI Series
SKU: TEC 3WI-1-1
3 Watts single and dual output, 4:1 input range Compact SIP-8 package
TEC 3WI is a new series with the design purpose to improve the prevalent 3 Watt SIP-8 DC/DC converters in terms of cost, efficiency and performance.
The latest technology and components effectuate a high efficiency for a low thermal loss. This enables an operating temperature range from -40°C up to +90°C.
The converters are fully regulated over 0 - 100% load (no minimum load is required).

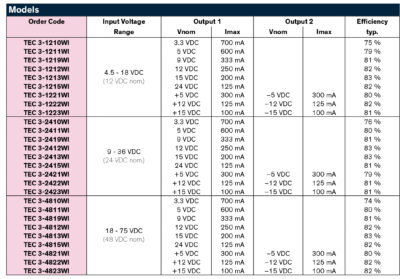

The models are available with ultra-wide input ranges of 4.5-18, 9-36 and 18-75 VDC.
The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
