TEL 30 Series
£0.00
SKU: TEL 30 Series

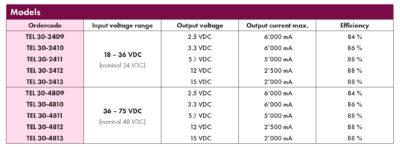

The TEL 30 Series is a new range of cost efficient, isolated 30W converters in a shielded metal case with excellent specification. The 10 models in this series feature 2:1 input range with 18-36 or 36-75 VDC. Overload and over voltage protection, under voltage shutdown as well as remote On/Off are features of this converter. Typical applications for the TEL 30 Series converter are communication and networking systems, industrial electronics and distributed power architectures.
- High power density: 30W in 51x25x9.6mm package
- Industry standard footprint
- Very high efficiency
- Models with low output Voltages: 2.5 & 3.3VDC
- Output voltage adjustable
- Optional remote On/Off
- Under voltage lockout
- Operating temperature range –40°C to +71°C
- Six-side shielded metal case
- Lead free design, RoHS compliant
- 3-year product warranty
