TEN 12WI Series
£0.00
SKU: TEN 12WI Series

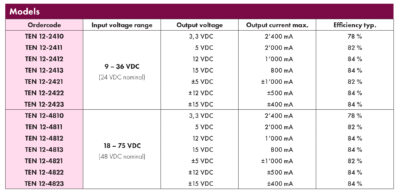

The TEN 12WI series is a family 12W DC/DC converter modules featuring ultra wide 4:1 input voltage ranges in a compact 2“x 1.0“ low profile package with industry-stan-dard footprint. A high efficiency up to 84% allows operating temperatures from –40°C to +85°C. A built-in EMI input filter complies with EN 55022, class A without any external components. Further standard features include remote On/Off (optional), over voltage protection and continuous short-circuit protection. Typical applications for these converters are battery operated equipment and distributed power architectures in communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required.
- Ultrawide 4 : 1 input range
- Input filter meets EN 55022, Class A and FCC, level A without external components
- Indefinite short-circuit protection
- Overvoltage protection
- I/O isolation 1500 VDC
- operating temperature range – 40°C to 85°C
- Remote On/Off (optional)
- Insulated baseplate
- Industry standard pinout
- 3-year product warranty
