TEN 25 Series
£0.00
SKU: TEN 25 Series

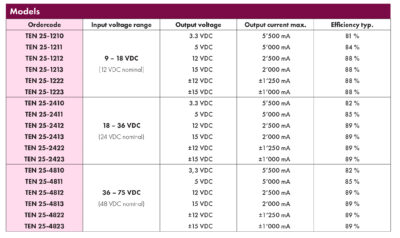

The TEN 25 series is a range of isolated DC/DC converters with high power density in a 51 x 41 x 9.5mm shielded metal case. All 18 models have a wide 2:1 input voltage range. The very high efficiency allows a safe operating temperature range of –40°C to +85°C. Other features are internal EMI-filter to meet EN55022, class A and remote On/Off. Typical applications for these converter modules are industrial electronics, communication systems, battery operated equipment and distributed power systems.
- Wide 2:1 input range
- Very high efficiency up to 89%
- Extended operating temperature range –40°C to +85°C
- Adjustable output voltage
- Remote On/Off
- Continuous short circuit protection
- Over voltage protection
- I/O isolation 1500 VDC
- Input filter meets EN 55022, Class A and FCC, Level A without external components
- Lead free design - RoHS compliant
- 3-year product warranty
