TEN 40N Series
£0.00
SKU: TEN 40N Series

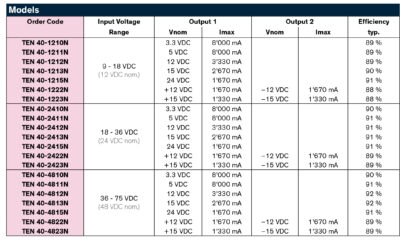

The TEN 40N Series is a new range of isolated high performance DC/DC converter modules. Due to the very high efficiency of up to 92% these 40 W converters come with a footprint of only 1.0” x 2.0”. The 15 models have a wide 2:1 input voltage range and a tight output voltage regulation. The output voltage is adjustable by external resistor. Remote On/Off and protection against overpower and overvoltage are standard features of these converters. Typical applications are in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is critical.
• Highest power density: 40 W in 1” x 2” x 0.4” package
• Excellent efficiency up to 92 %
• Output voltage adjustable
• Remote On/Off
• Short circuit protection
• Over voltage protection
• I/O isolation 1500 VDC
• Operating temperature range –40°C to +80°C
• Fully RoHS compliant
• 3-year product warranty
