TEN 60N Series
£0.00
SKU: TEN 60N Series
The TEN 60N series is a family of high performance 60 Watt DC/DC converter modules featuring wide 2:1 input voltage ranges in a six side shielded 2” x 1” metal package with industry standard footprint. Standard features include remote On/Off, over voltage protection, under voltage lockout and short circuit protection. High efficiency across load range and low input current characteristics at no load make these converters the ideal solution for battery-operated systems. Typical applications are in wireless networks, telecom/datacom, industry control systems and measurement equipment.
• 2" x 1" metal package

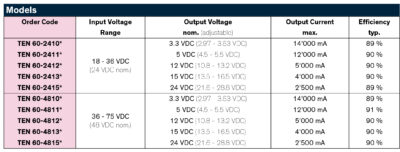

• Wide 2:1 input voltage range 9–18, 18–36, 36–75 VDC
• High efficiency up to 92%
• Adjustable output voltage
• Operating temperature range –40°C to +85°C
• EN 55032 class A (with external components)
• Remote On/Off
• Under voltage lockout
• RoHS compliant
• 3-year product warranty
