TEN 3WI Series
£0.00
SKU: TEN 3WI Series

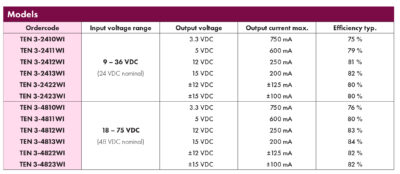

The TEN 3WI series is a family of dc-dc converter modules with 3W output power, featuring ultra wide 4:1 input voltage ranges of 9-36VDC or 18-75VDC. They come in a DIP-24 plastic package with industry-standard footprint. A high efficiency up to 84% allows operation ambient temperatures of –40°C to +70°C at full load. A built-in EMI input filter complies with EN 55022,class A without need of external components. Further standard features include over voltage protection and continuous short circuit protection. Typical applications for these converters are battery operated equipment and distributed power architectures in communication, instrumentation and industrial electronics, everywhere where isolated, tightly regulated voltages are required.
- Ultra-wide 4:1 input range
- Full SMD-Design
- High efficiency up to 84%
- Extended operating temperature range –40°C to +85°C
- Excellent load and line regulation
- Indefinite short-circuit protection
- I/O isolation 1’500 VDC
- Input filter to meet EN 55022, Class A and FCC, level A without external components
- Lead free design, fully RoHS compliant
- 3-year product warranty
