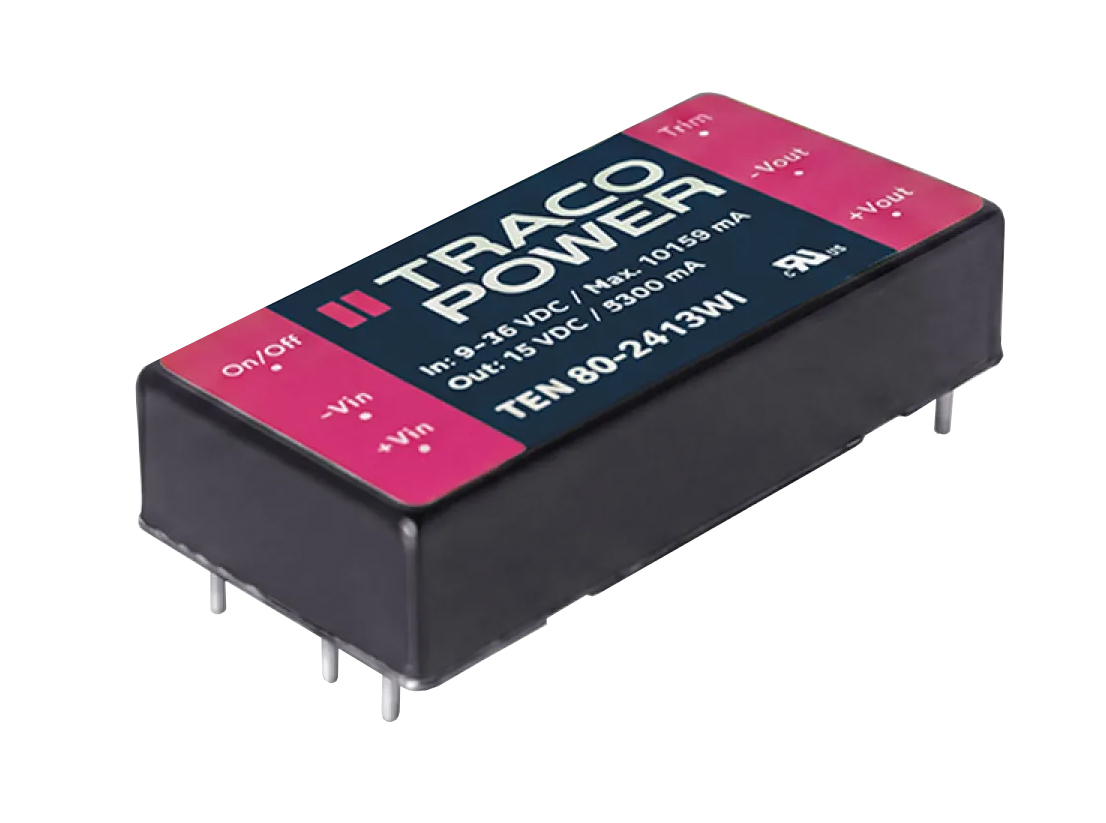

TEN80 WI Series
£0.00
SKU: TEN80 WI Series
The TEN 80WI series is a family of high performance 80 Watt DC/DC converter modules featuring ultra wide 4:1 input voltage ranges in a six side shielded 2”x 1” metal package with industry standard footprint. High efficiencies of up to 92% allow for an operating temperature range (natural convection) of -40 to +60°C without power derating. Certified according to the latest IT standard (IEC/EN/UL 62368-1) and equipped with additional features like remote on/off function and protection against short circuit, overvoltage and over temperature the TEN 80WI series is suitable for many industrial applications.
• 2" x 1" metal package
• Wide 4:1 input voltage range 9–36, 18–75 VDC
• Minimal heat development due to high efficiencies up to 92%
• Remote On/Off and Trim function
• Operating temperature range –40°C to +85°C
• EN 55032 class A (with external components)
• Protection against short circuit, overvoltage and overtemperature
• Under voltage lockout
• 3-year product warranty
