TEP160 Series
£0.00
SKU: TEP160

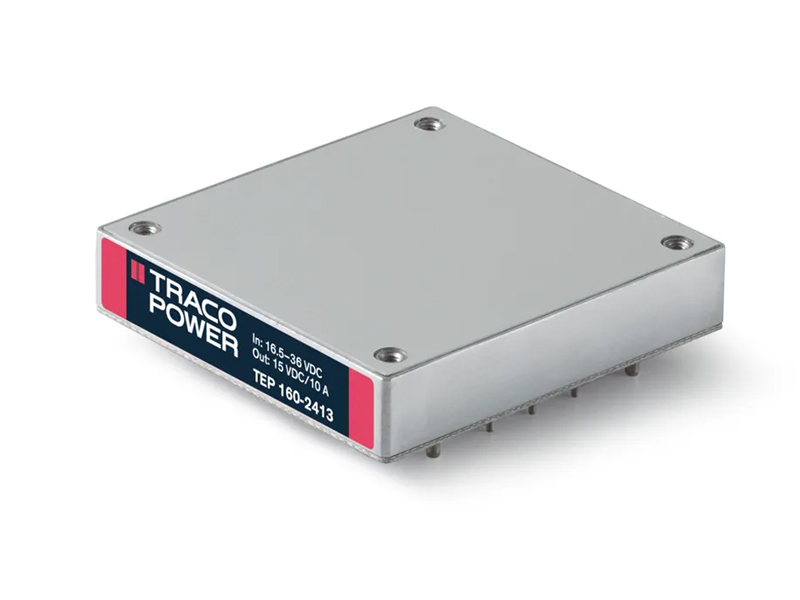

The TEP 160 Series is a family of isolated high performance DC/DC converter modules with wide 2:1 input voltage ranges which come in a rugged, sealed industry standard half brick package. A very high efficiency allows full power operation without forced air cooling at 25°C This temperature can be increased to 40°C with optional mounted heatsink or up to 60°C when mounted on an iron base plate. The very wide input voltage range makes these converters interesting solution for battery operated systems. Typical applications are in telecom/datacom and industry control systems for on board power distribution.
• Compact metal package
• Wide 2:1 input voltage ranges 16.5–36, 33–75 VDC
• Very high efficiency up to 93%
• No minimum load
• Soft start
• Adjustable output voltage +10/-20%
• Sense line
• Remote On/Off input
• Over temperature protection
• 3-year product warranty
