THB 6 Series
£0.00
SKU: THB 6 Series

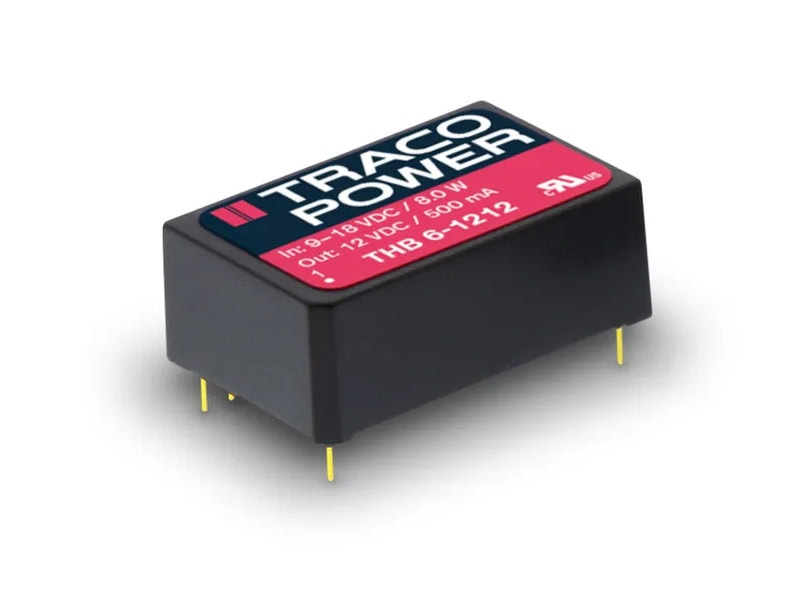

The THB 6 series is a new range of high performance, regulated DC/DC converters in a DIP-24 plastic package. A reinforced I/O-isolation system and a wide 2:1 input voltage range make this product the best choice for many demanding applications like transportation systems, industrial controls, medical equipment, instrumentation, everywhere where high basic-, supplementary or reinforced insulation is required to meet requested safety standards. A high efficiency allows safe operation in a temperature range of –40°C to +71°C. Other features of this product are over voltage protection and internal EMI-input filter to meet EN 55022 class A without additional components. Full SMD-design with exclusive use of ceramic capacitors ensures a very high reliability and a long product lifetime.
• I/O isolation 3000 VAC rms rated for 1000 V rms (1410 V pk) working voltage
• Medical safety to UL 60601-1 and IEC/EN 60601-1 3rd edition, 2 x MOOP
• Ultra compact DIP-24 package
• Wide 2:1 input voltage ranges
• Operating temperature range –40°C to +75°C
• Low leakage current
• Short circuit protection
• Input filter to meet EN 55022, Class A
• 3-year product warranty
