10 Watts single & dual output, 4:1 input, DIP-24 plastic package, high isolation & reinforced insulation, approved to IEC/EN/ES 60601-1

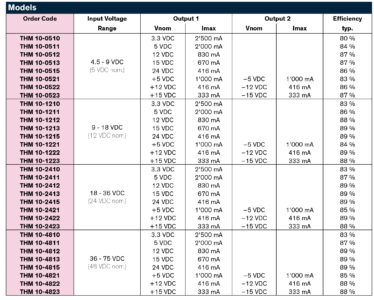

The THM-10 series is a range of medical 10 Watt DC/DC converters in DIP-24 plastic package and with wide 2:1 input voltage range.
They provide a reinforced isolation system for 5000 VACrms isolation and a very low leakage current of less than 2 μA.
The units are approved to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP (Means Of Patient Protection) and come along with an ISO 14971 risk management file.
Design and production conform to the quality management system ISO 13485.
With a high efficiency of up to 89% and highest grade components the converters can reliably operate in an ambient temperature range of –40°C up to +90°C.
They constitute a reliable solution not only for medical equipment but also for demanding ranges of application such as transportation, control & measurement or IGBT drivers.
