THM 15 Series
£0.00
SKU: THM 15
15 Watts single & dual output, medical 15 Watt DC/DC converter 2:1 input range, 1.6” x 1.0”
plastic package

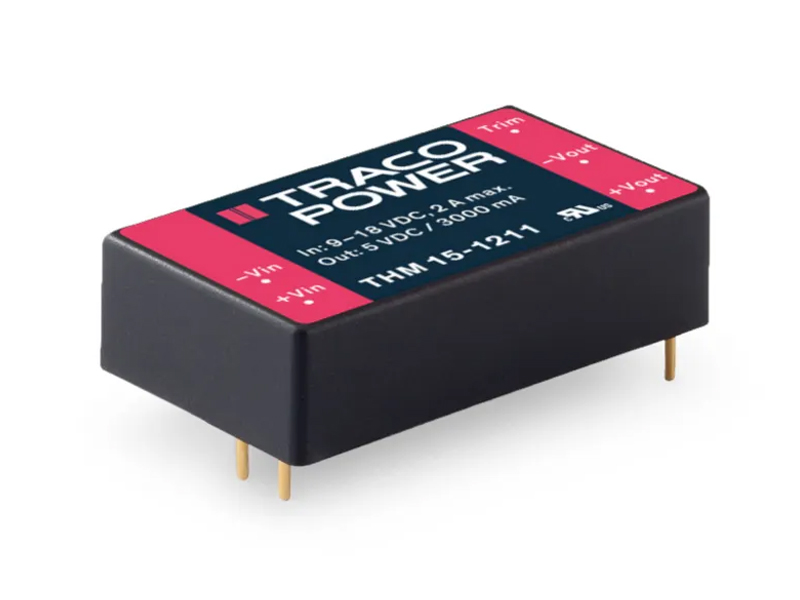

The THM 15 series is a range of medical 15 Watt DC/DC converters in 1.6” x 1.0” plastic package and with wide 2:1 input voltage range.
They provide a reinforced isolation system for 5000 VAC rms isolation and a very low leakage current of less than 2.5 μA.
The units are approved to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP (Means Of Patient Protection) and come along with an ISO 14971 risk management file.
Design and production conform to the quality management system ISO 13485.
With a high efficiency of up to 90% and highest grade components the converters can reliably operate in an ambient temperature range of –40°C up to +85°C.
They constitute a reliable solution not only for medical equipment but also for demanding ranges of application such as transportation, control & measurement or IGBT drivers.
