THN 10WIR Series
£0.00
SKU: THN 10WIR Series
The THN 10WIR series is a family of ruggedized 10 Watt DC/DC converters for highest reliability in harsh environments. The converters have a wide 4:1 input range and increased resistance against electromagnetic interference, shock/vibration and thermal shock and come in a six-side shielded 1” x 1” metal package. The innovative design provides high efficiencies up to 90% and thus enable an operating temperature range from -40 to +80°C without derating. The approvals according to standards EN 50155 and EN 61373 qualify them for railway and transportation systems. Additional qualification for the fire behaviour of components according to EN45545-2 and the safety approval according IEC/EN 62368-1, UL62368-1 support a potential compliance test of the application. Built-in features like an internal EN 55032 class A filter, input under-voltage- lockout, short circuit protection, remote On/Off and output voltage trim make this series suitable for almost any application demands and thus facilitate the design-in process.
• Compact 1” x 1” metal package
• EN 50155 and EN 61373 approval for railway applications
• Qualification for fire behaviour according to EN 45545-2

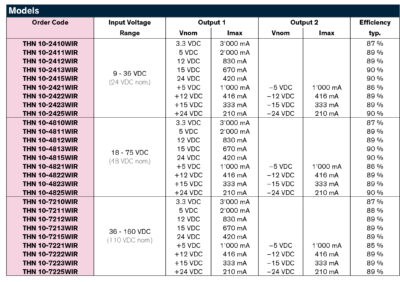

• Wide 4:1 input voltage: 9-36, 18-75, 36-160 VDC
• Operating temperature range -40 to +80 °C without derating
• High efficiency up to 90%
• 3000 VDC I/O-isolation
• Protection against overload, overvoltage and short circuit
• Remote On/Off and Trim function
• 3-year product warranty
