TIB 480 Series
£0.00
SKU: TIB 480 Series

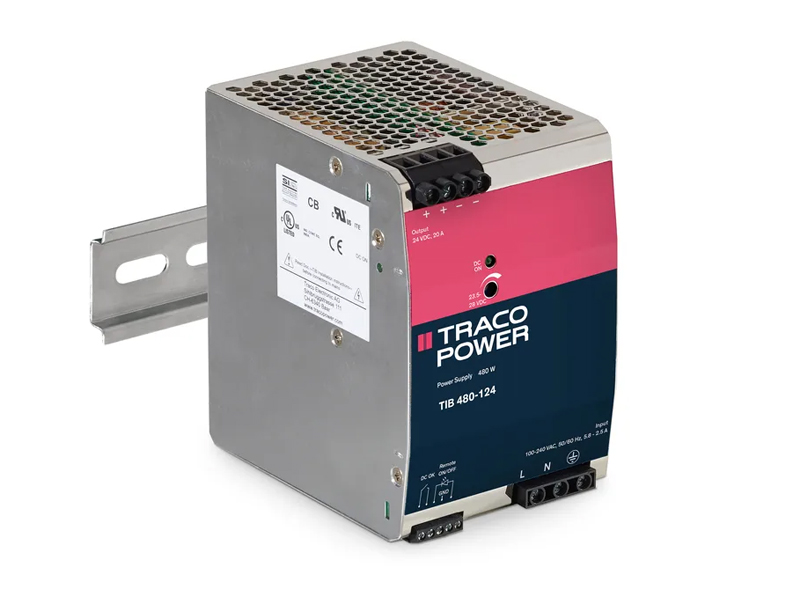

The TIB480 480W DIN-rail power supplies combine the most efficient circuit topology with optimized cost/performance ratio for industrial environments and for electrical control cabinets. They have a very high efficiency of up to 95.0% which allows a very slim package design. The output voltage is adjustable from –2% to +17%. The case offers the potentially useful feature to fix the DIN-rail clip to the side wall for the mounting inside flat panels. Over a period of minimum 4 seconds they can operate with a boost power of 150%. The boost power facilitates the activation of stepper motors, solenoids or actuators. The units operate with a high power factor of up to 99% by active power factor correction which also keeps the input inrush current low. They come with the safety standard approvals for IEC/EN/UL 62368-1, IEC/EN/UL 61010-1 and UL 508.
• Slim profile, for DIN-rail mounting
• Alternative side-mounting for flat panels
• High power factor by active power correction
• Very high efficiency up to 95%
• Power Back immunity
• 150% peak current for 4 s
• Operating temperature range: –40°C to +70°C max.
• Adjustable output voltage
• Short circuit and overload protection
• 3-year product warranty
