TIM 3.5 Series
SKU: TIM 3.5-1
3.5 Watts single and dual output, 4:1 input range Compact DIP-16-package, isolation of 5000 VAC rms for medical applications

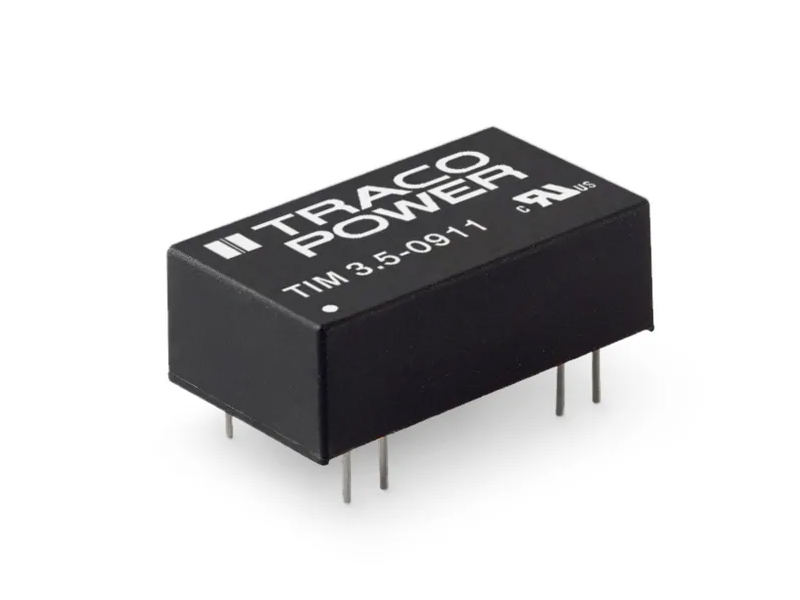

The TIM 3.5 series is a range of 3.5 Watt DC/DC converters in compact SMD package and with reinforced isolation of 5000 VACrms for medical applications.
With a low leakage current of less than 2 μA the converters are predestined to insulate electrical equipment from the applied parts to patient (BF classification).
The models are approved to IEC/EN/ES 60601-1 3rd edition for 2xMOPP up to an altitude of 5000m and come along with an ISO 14971 risk management file.
