TMR 8 WI Series
£0.00
SKU: TMR 8 WI Series

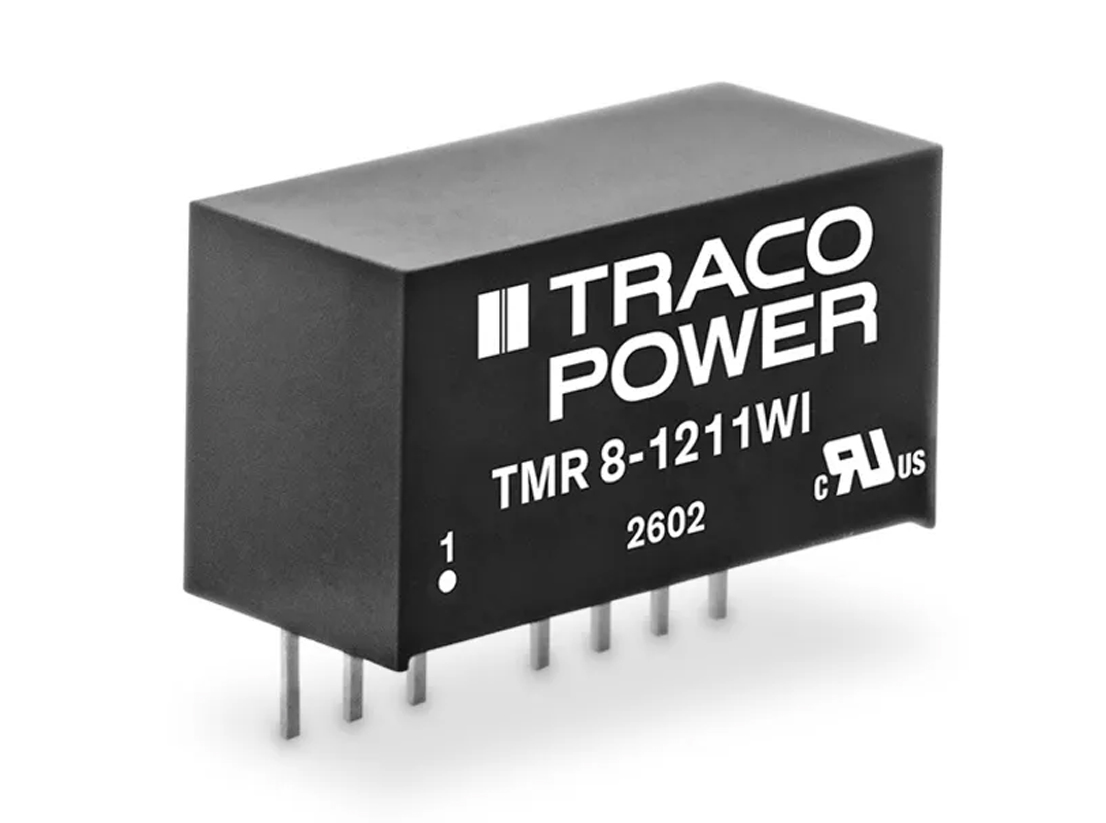

The TMR 8WI series is a family of isolated 8W DC/DC converter modules with regulated output, featuring wide 4:1 input voltage ranges. The product offers a very high power density of 3.19W/cm³ in an ultra-compact SIP-8 package occupying only 2.0 cm² (0.3 square inch) of board space. An excellent efficiency of up to 88% allows for an extended operating temperature range of –40° to +70°C without derating under natural convection conditions. Further features include remote On/Off control, continuous short circuit protection and an I/O isolation voltage of 1500 VDC. The very compact dimensions of these converters make them an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.
• Ultra compact 8 Watt converter in SIP-8 casing
• High power density of 3,12W/cm³
• Wide 4:1 input voltage ranges
• I/O-isolation 1500 VDC
• High efficiency (up to 88%) for low thermal loss
• Operating temperature range -40°C to +75°C (without derating)
• Fully regulated outputs
• Remote On/Off control
• Indefinite short circuit protection
• 3-year product warranty
