TPP 180-M Series
£0.00
SKU: TPP 180-M Series

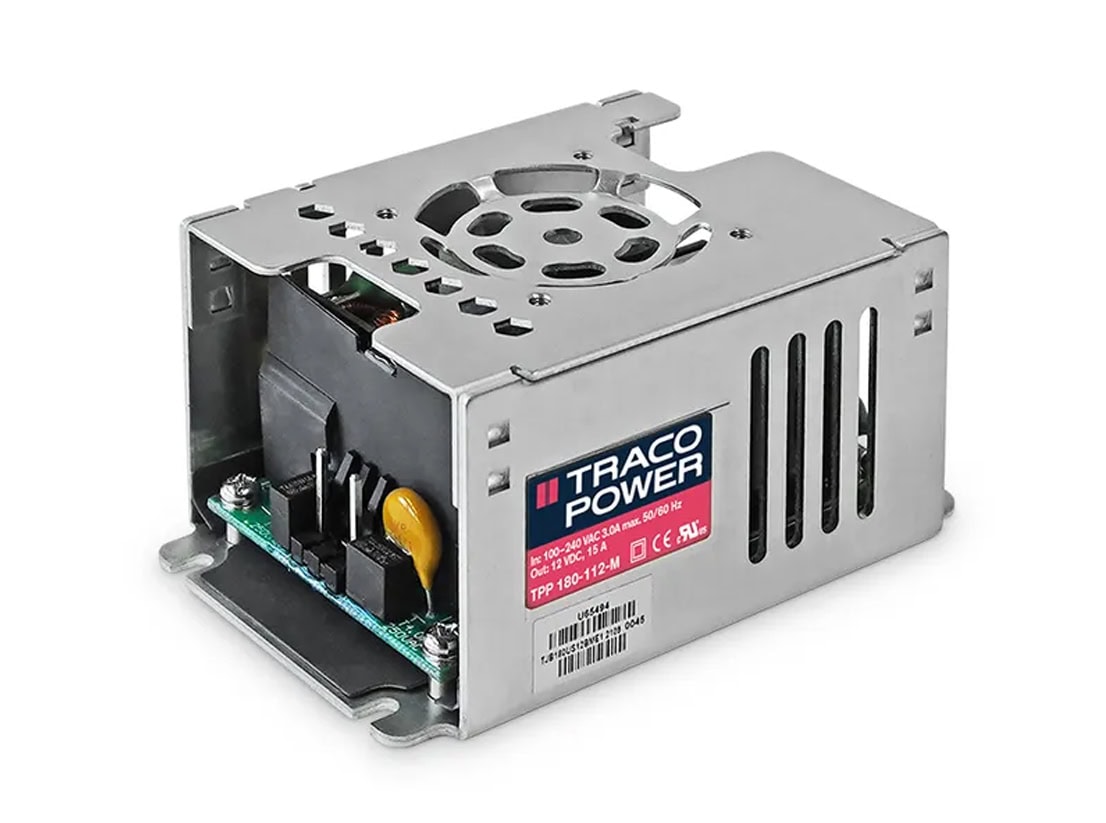

The TPP 180-M is series of encased AC/DC power supplies coming in an
encased package. They feature a reinforced double I/O isolation (4000 VAC)
system according to latest medical safety standards (60601-1 edition 3.2, 2 x
MOPP). The leakage current is below 100 μA and makes the units suitable for
BF (body floating) applications.
- 85-264VAC input
- High power-density: 180 Watt in 3.6”x 2.44” package (encased)
- I/O isolation 4000 VAC rated for 250 VAC working voltage
- Certification according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP
- Risk management process according to ISO 14971 incl. risk management file
- Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3
- Peak power operation up to 220 Watt for 5s
- Operating temperature –40°C to 85°C
- Active power factor correction >0.9
- Operating up to 5000m altitude
- 5-year product warranty
