TPP40 Series
£0.00
SKU: TPP 40
The TPP 40 Series of 40 Watt AC/DC power supplies feature a reinforced double

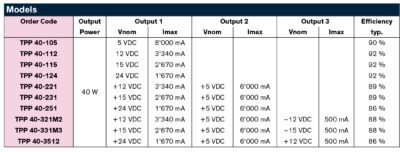

I/O isolation system according to latest medical safety standards IEC/EN/-ES 60601-1 edition 3.2 for 2 x MOPP up to 5000 m altitude. The leakage current is below 75 μA which makes the units suitable for BF (body floating) applications. Single, dual and triple output versions
- 85 - 264 VAC input
- Enclosed power supply with screw terminal connection
- Certification according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP
- Low leakage current <75 μA rated for BF applications
- Risk management process according to ISO 14971 incl. risk management file
- Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3
- EMC compliance to IEC 60601-1-2 ed. 4
- Protection class l and ll prepared
- Operating up to 5000 m altitude
- Ready to meet ErP directive, <0.15 W no load power consumption
- 5-year product warranty
