TCL Series
£0.00
SKU: TCL
The TCL series is a family of 20W-120W DIN-rail power supplies with an excellent
price/performance ratio. With tightly regulated output voltage and high immunity
against electrical disturbances on the mains they provide a reliable power source for
sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment. Compact size, light weight, easy snap-on mounting on DIN-rails and the choice of two connection terminal versions are other features of these power supplies. The TCL series complies with all major safety standards for Europe (EN60950-1, EN50178), North America (UL/cUL 60950, UL 508 listed) or elsewhere in the world (CB-Report).
• For industrial, office and residential applications
• Ultracompact plastic housing
• Connection by spring clamp terminals or detachable screw terminal block
• Reliable snap-on mounting on DIN-rails
• Adaptor for wall mounting
• Universal input 85–264 VAC, 50/60 Hz

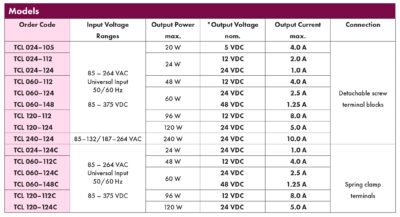

• Models with 5, 12, 24 & 48 VDC output
• Output voltage adjustable
• Power OK signal
• Low ripple and noise
• Overload and short-circuit protection
• Parallel operation possible
• Worldwide safety approvals
• Redundancy module
• 3-year product warranty
