DIN rail mounting, 72-600 Watts, single 12V-48V DC output
The TRACO TSP series comprises high performance DIN-rail mount power supplies designed for reliable operation under difficult factory floor conditions.
High immunity against electrical disturbances and rugged metal casing make these modules the best choice to power sensitive loads in industrial process systems, machine tools or other demanding industrial applications. They provide a DC-OK signal and external shut down function. Detachable screw terminal blocks make the connection easy.
This power supply line is accompanied by a wide range of function modules for reliable system solutions:
Redundancy modules for true current sharing in parallel operation and for redundant systems.
Battery controller modules to configure high reliable UPS systems for 12, 24 and 48 VDC. Selection of battery packs available.
Buffer modules for protection against short time AC power loss. Maintenance free! No batteries required.
ATEX certification and IECEx test report is available as an optional extra

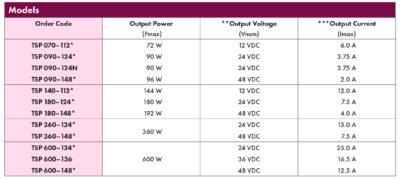

TSP070-112 TSP090-124 TSP090-124N TSP140-112 TSP180-124 TSP360-124 TSP600-124 TSP-REM360 TSP-BCM24 TSP-BFM24
TSP Series; 78-600 Watts; Single Output; Battery Backed versions; DIN Rail or Chassis Mounting; Optional ATEX Certification for Hazardous Locations
