TRI 1 Series
£0.00
SKU: TRI 1 Series
The new TRI 1 is a high isolation, unregulated DC/DC converter series which comes in a compact SIP-7 package. The core characteristic of the TRI 1 series is a sophisticated reinforced isolation system which is able to withstand high test voltages (8000 VDC for 1s and 3000 VAC for 60s) and working voltages (480 VAC rms). Efficiencies up to 81% allow safe operation from –40°C to +85°C without derating. All models have a ±10% input voltage range and precisely regulated, isolated output voltages. With the latest IT safety certifications (IEC/EN/UL 62368-1) the TRI 1 series is the perfect choice for many demanding low power applications in the industrial, transportation and
instrumentation sectors.
• Reinforced I/O-isolation 3000 VAC ratedbfor 480 VAC working voltage
• Ultra-high isolation peak voltage 8000 VDC (1s)
• Operating temperature range -40 to
+85°C without derating
• High efficiency up to 81%

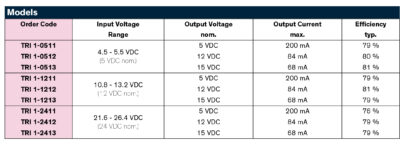

• Input voltage range (±10%): 5, 12, 24 VDC
• Protection against overvoltage and short circuit
• 3-year product warranty
